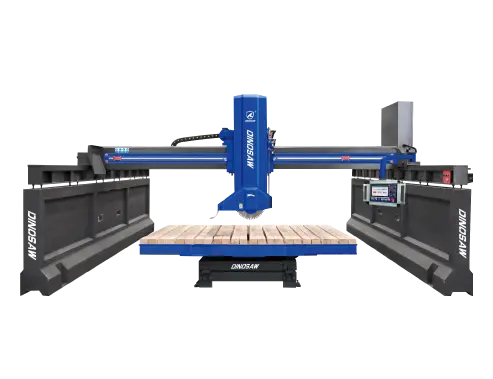

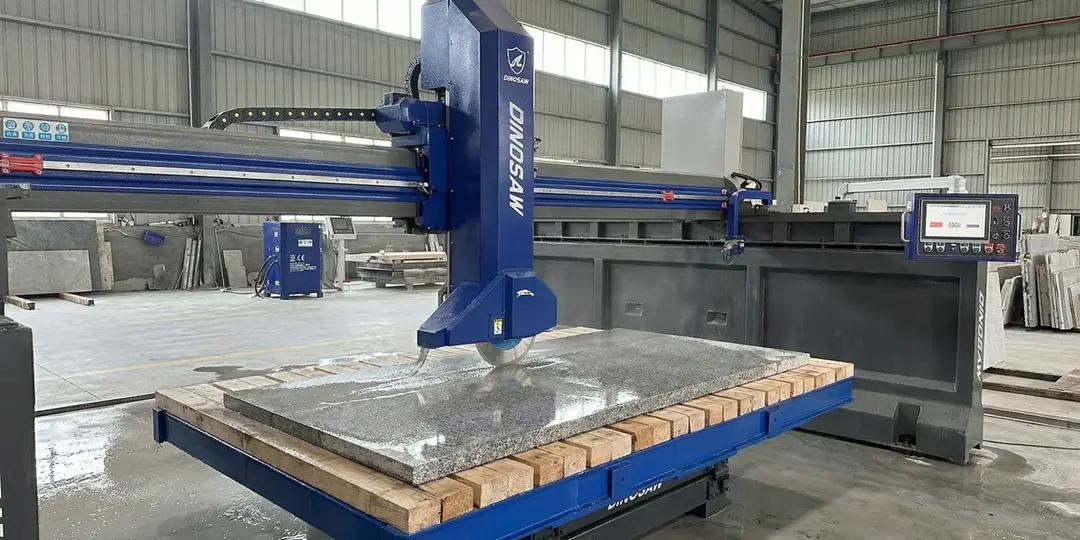

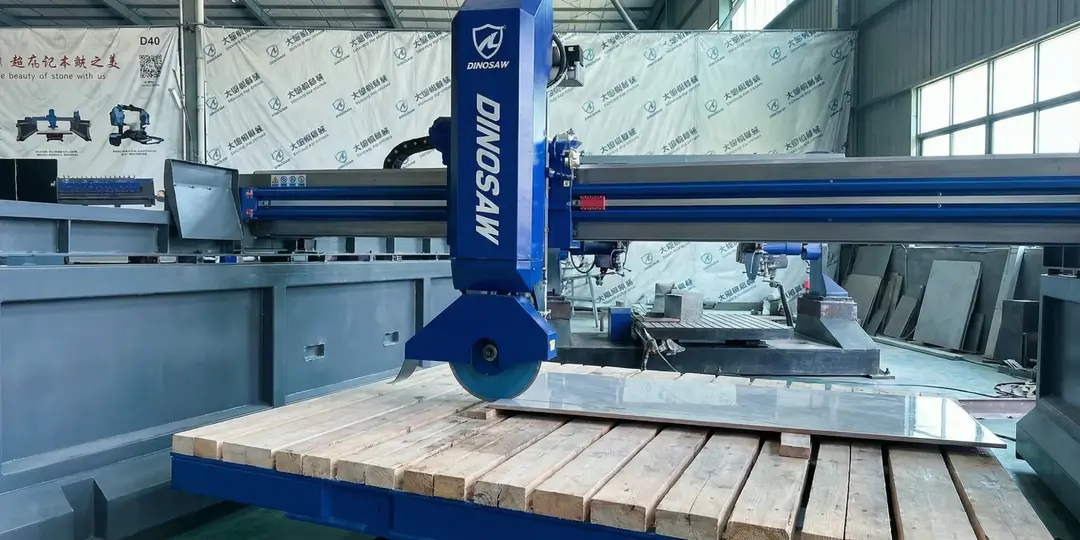

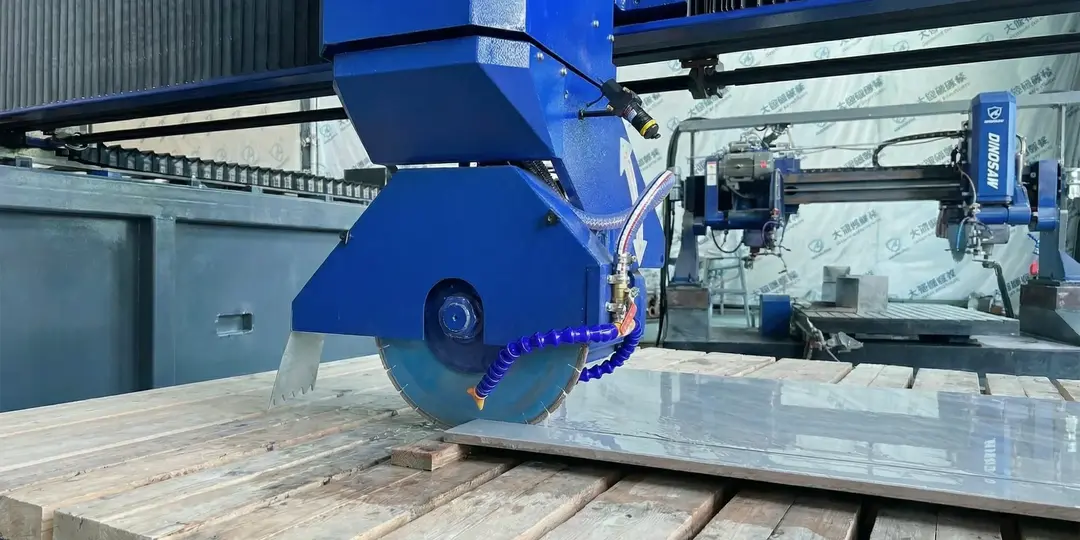

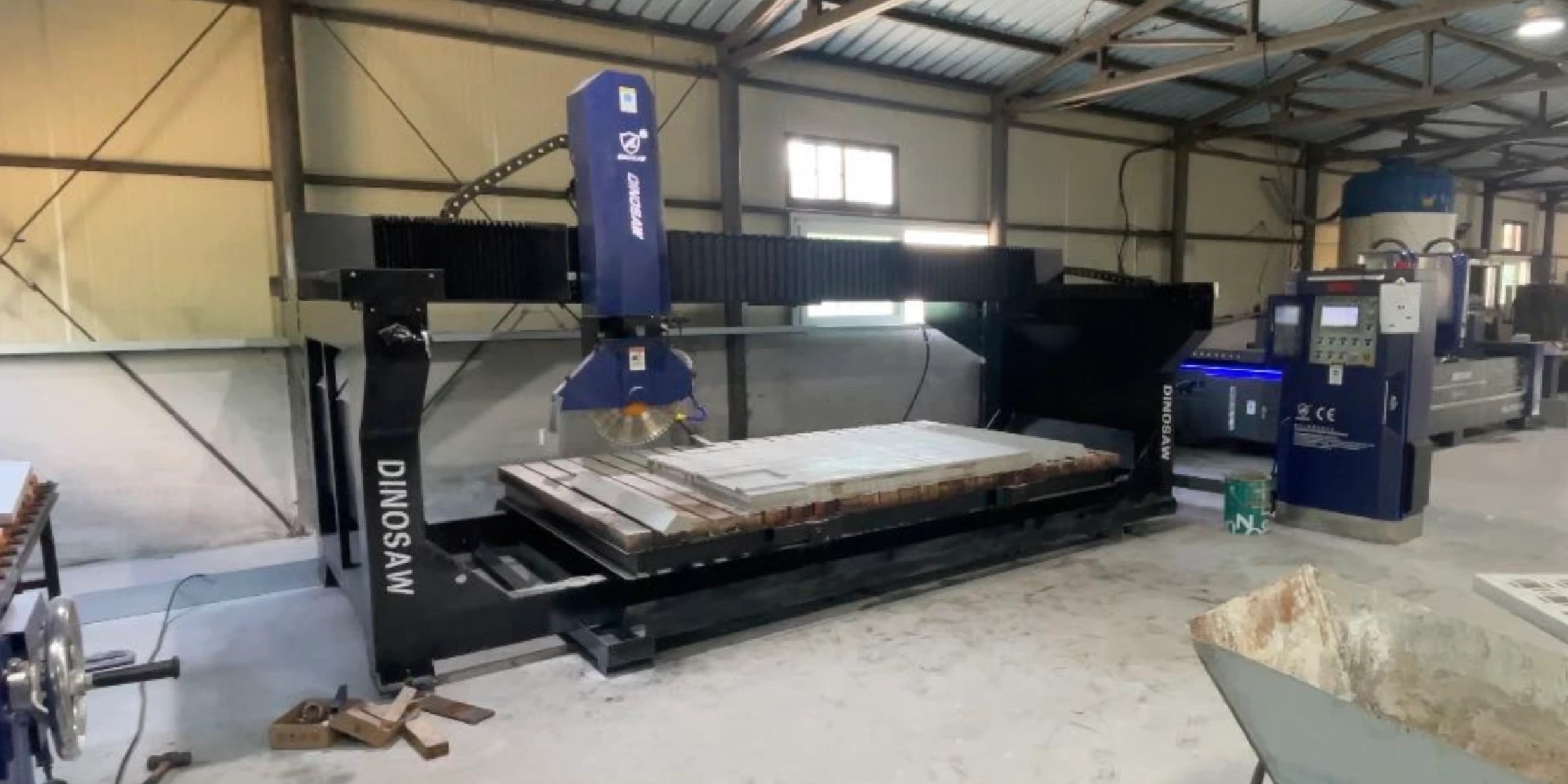

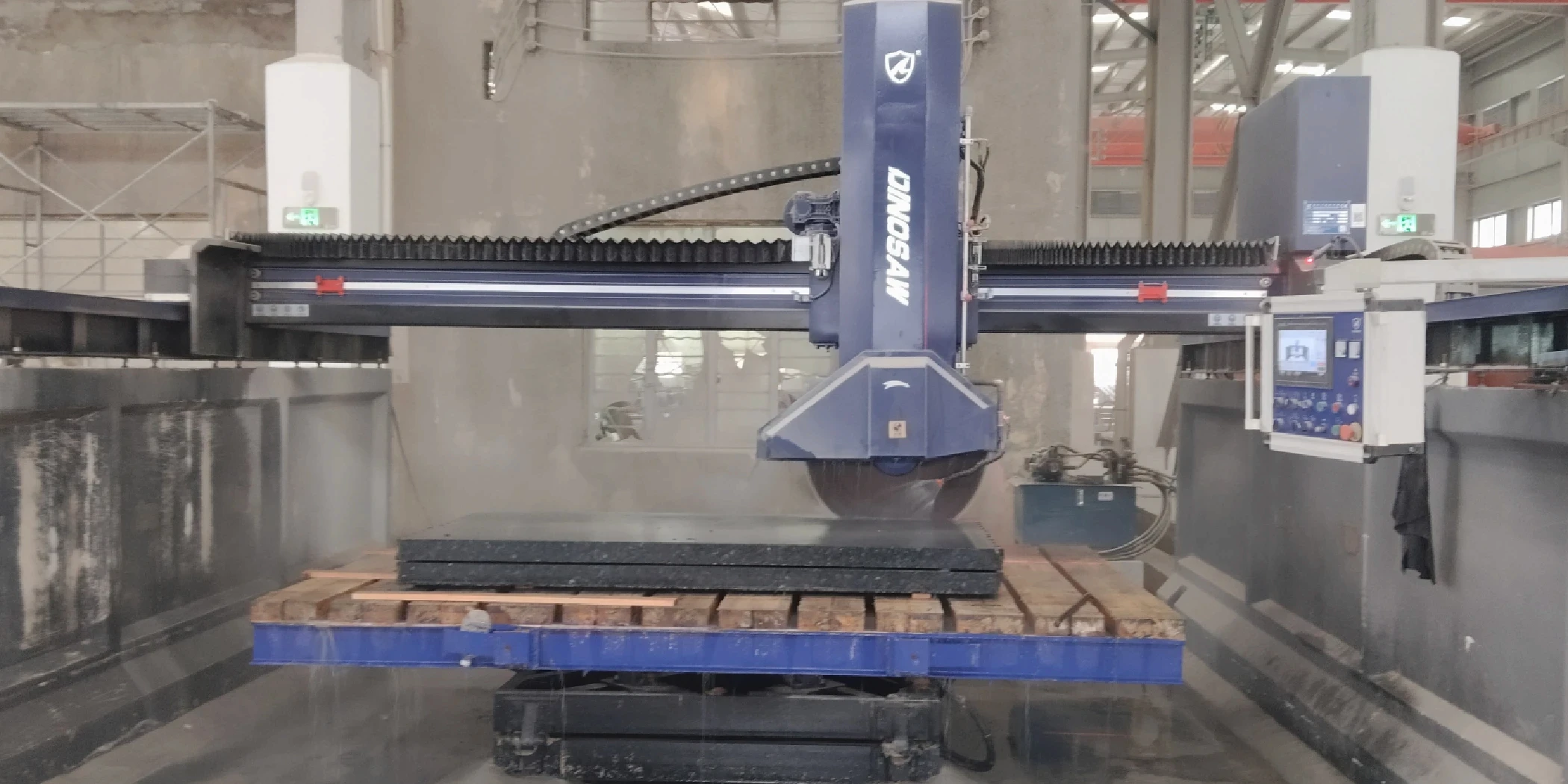

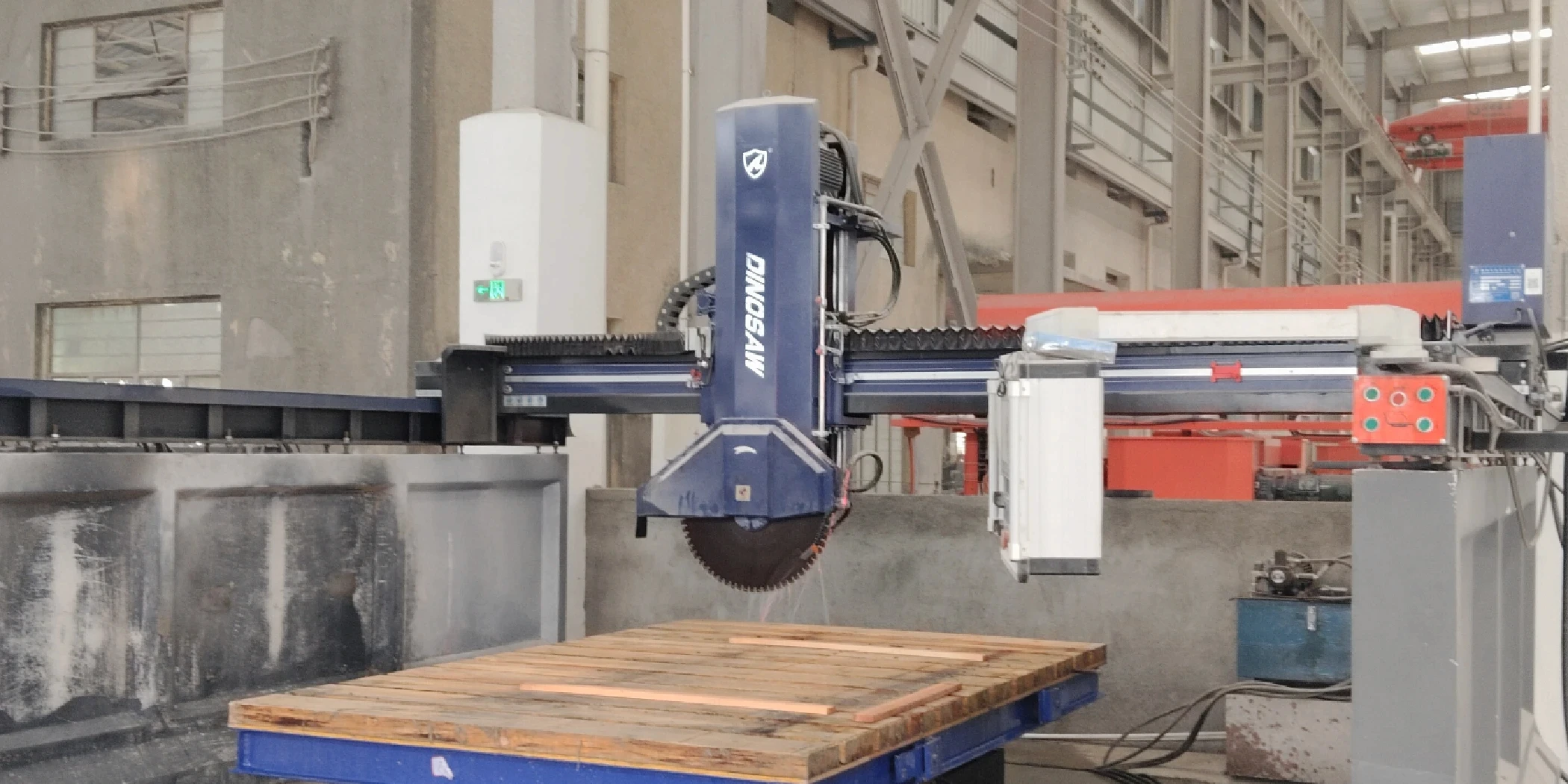

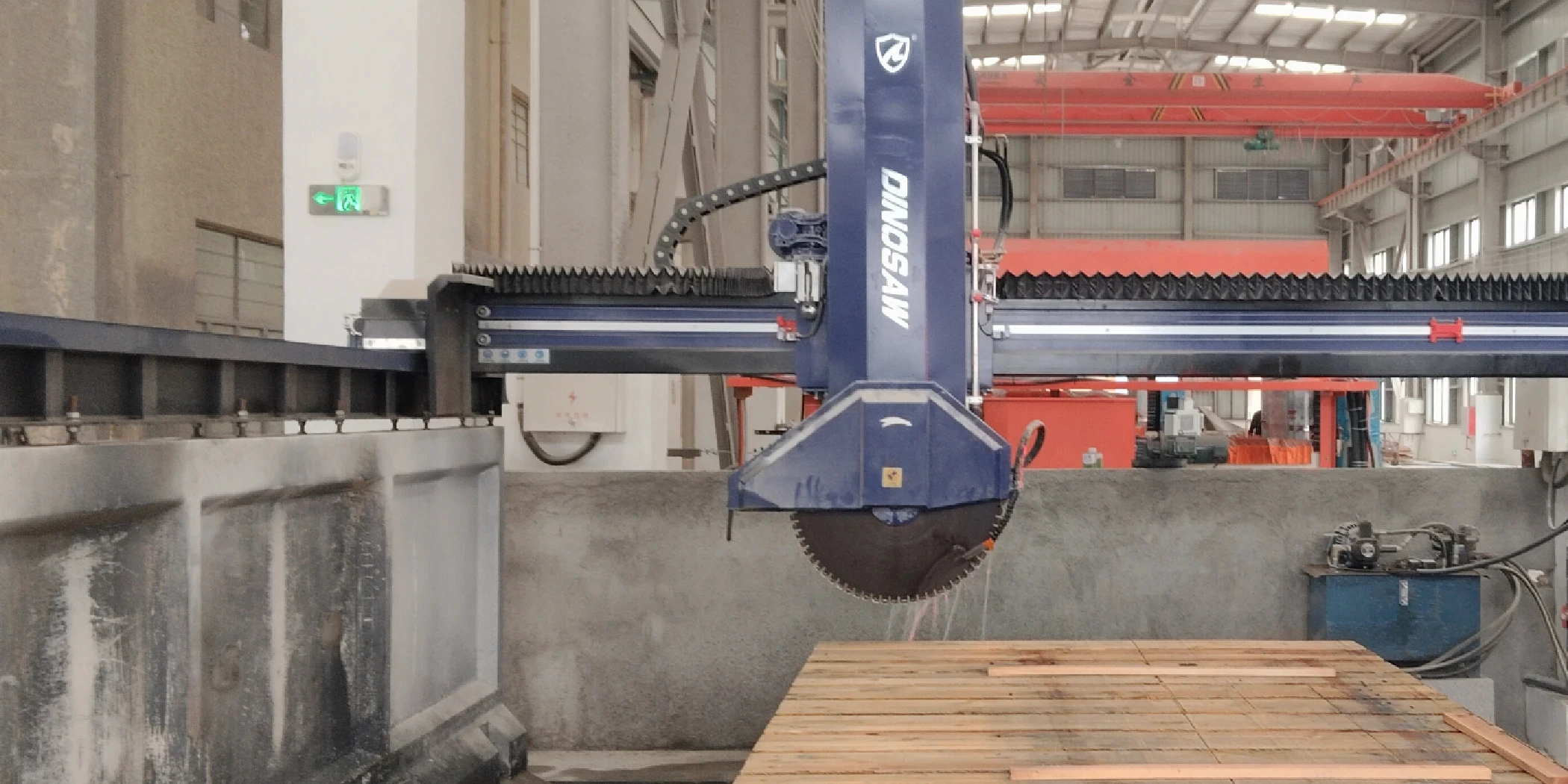

CNC Stone Bridge Saw for Precision Cutting

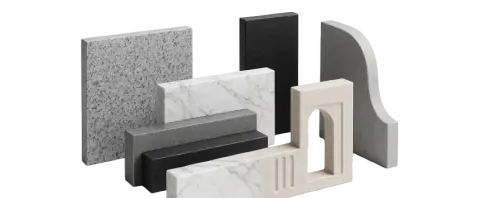

In real production, this CNC bridge saw is most commonly used to produce:

• Kitchen countertops and island tops

• Bathroom vanity tops

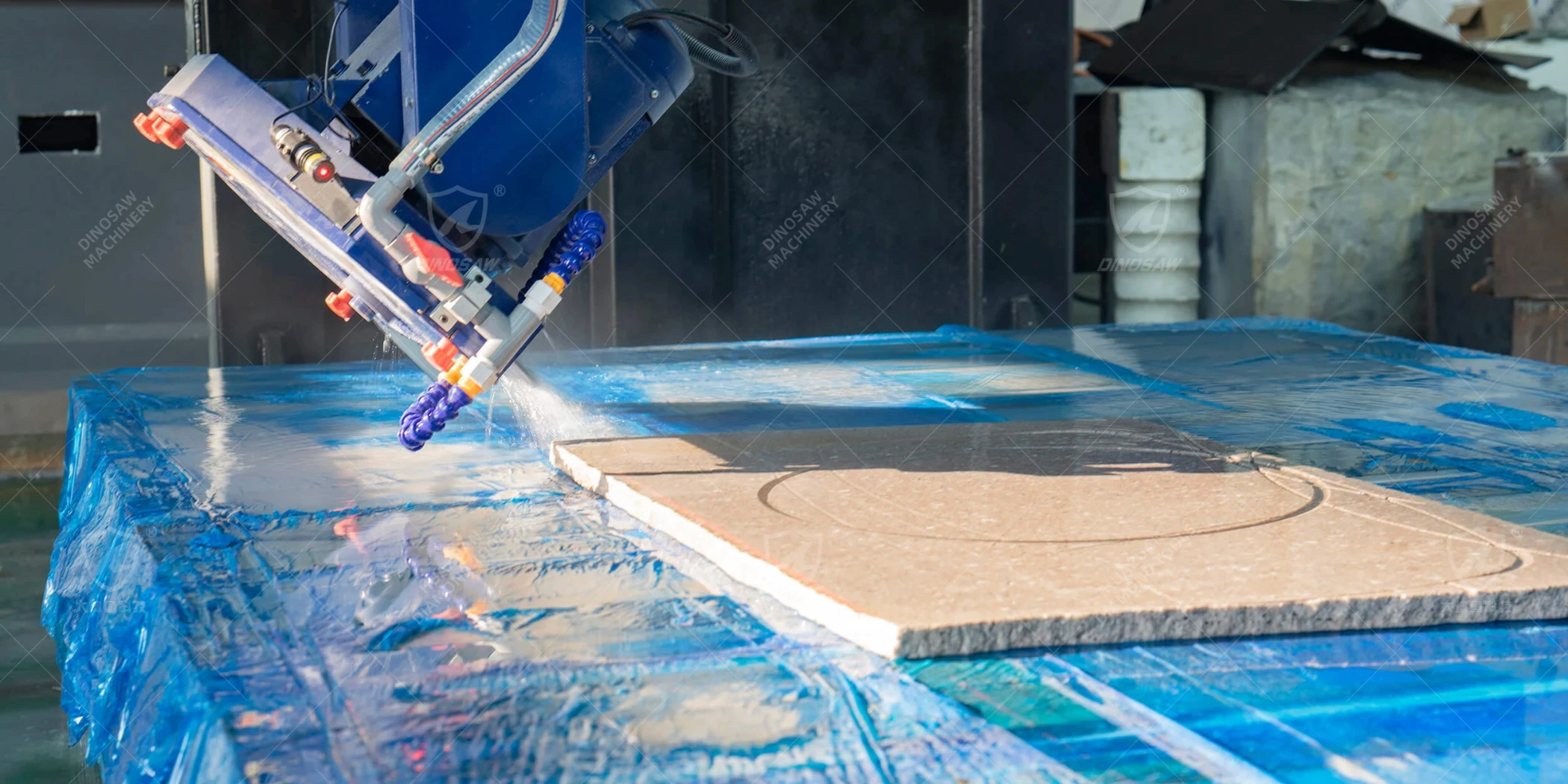

• Sink and cooktop cut-outs

• Window sills and door thresholds

• Stair treads and engineering panels

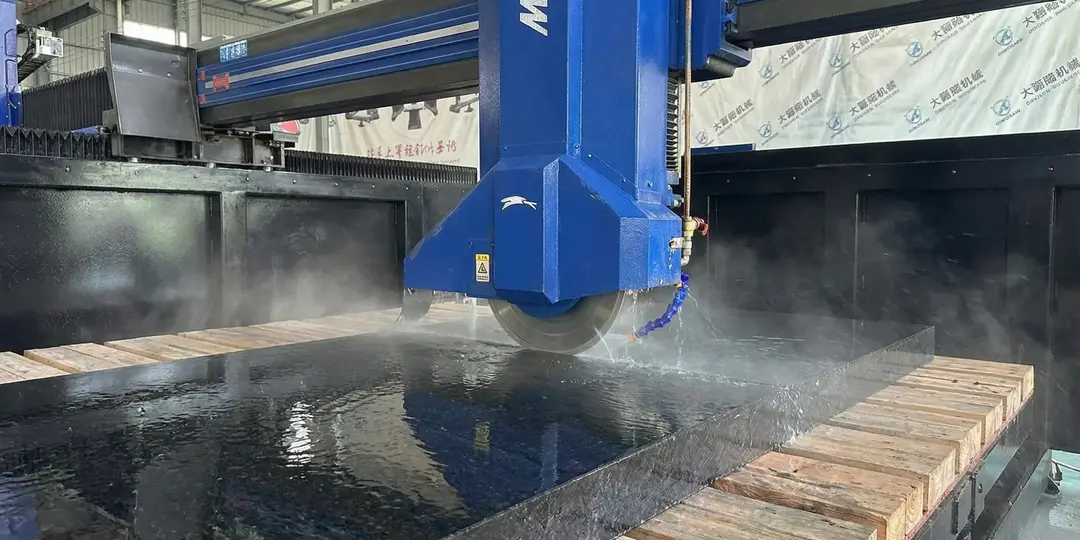

These products share one thing in common: a single cutting mistake can waste an entire slab. CNC control ensures that straight cuts, internal cut-outs, and angled edges are executed exactly as planned, reducing material loss and improving delivery reliability.

The standard working table size is 3200 × 2000 mm, which covers most countertop and interior stone slabs used in daily projects.

Different DINOSAW CNC bridge saw configurations support different cutting heights, allowing the machine to handle:

• Standard countertop slabs

• Thickened countertop edges

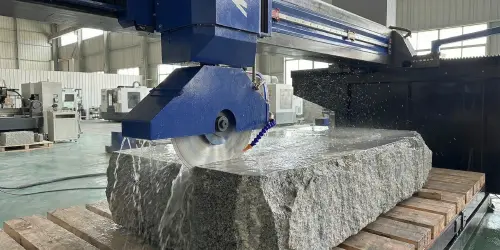

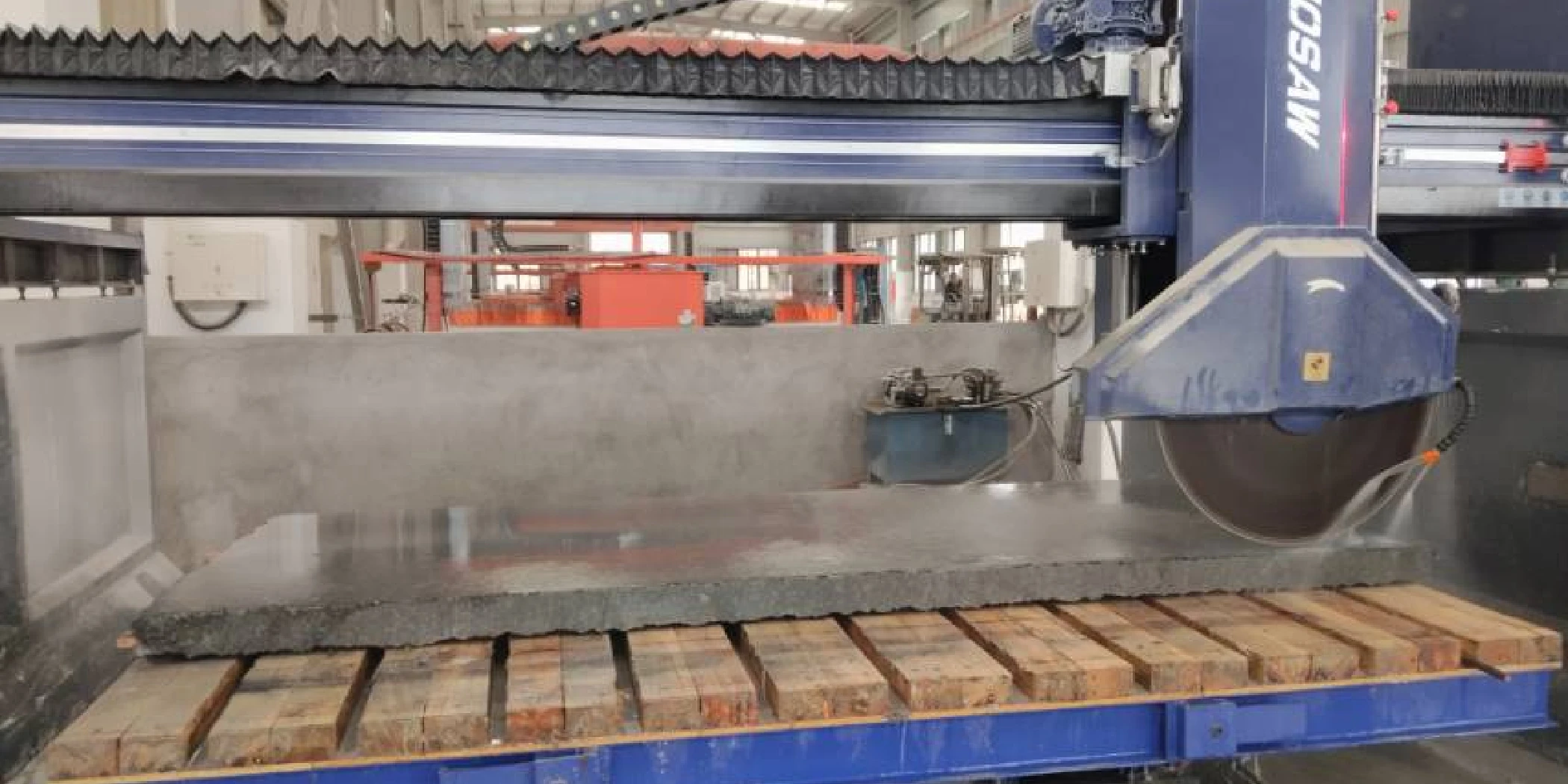

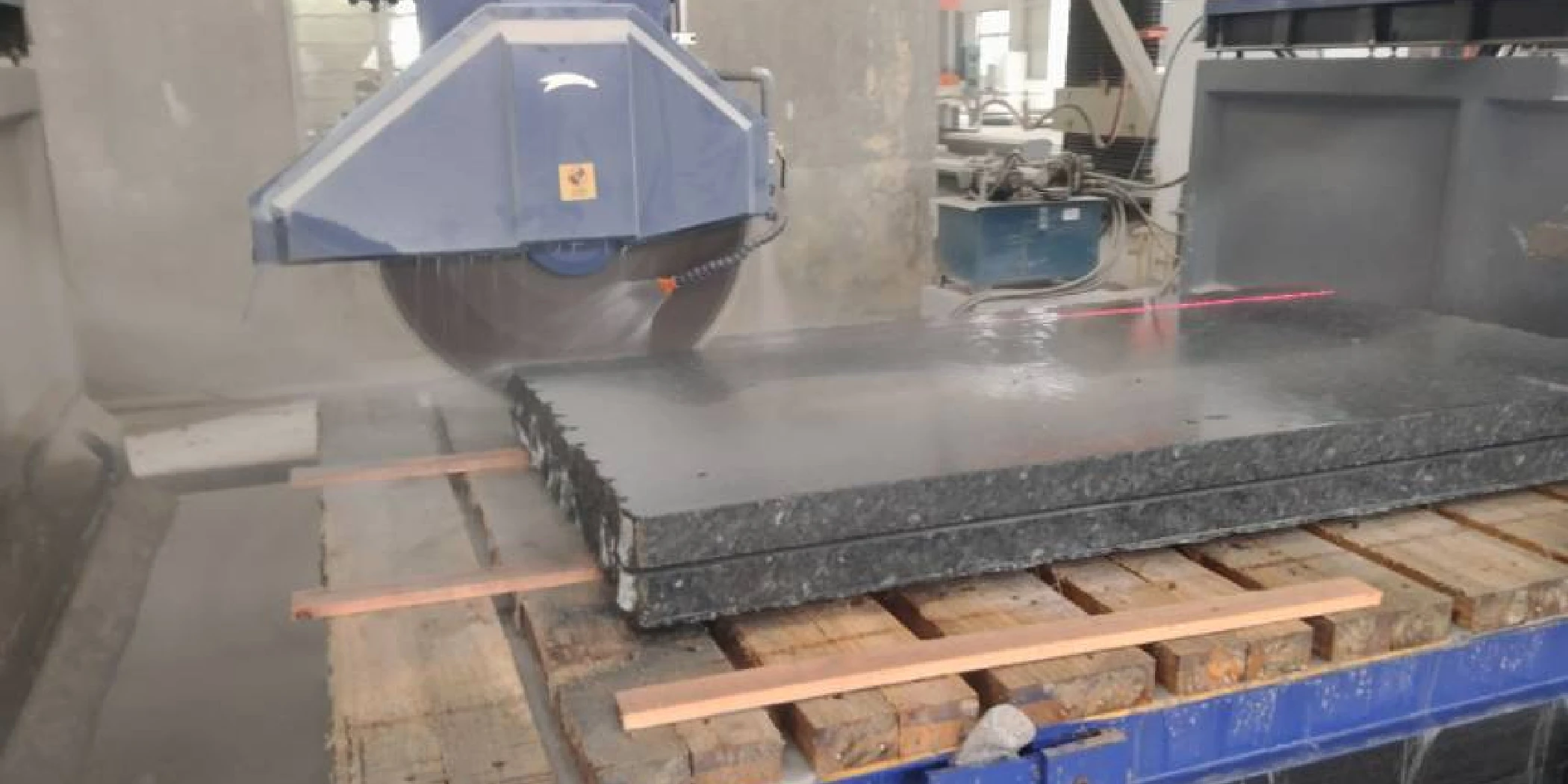

• Stair treads and structural stone components

Rather than focusing on maximum limits, DINOSAW helps customers select or customize a bridge saw configuration that matches the thickest and most demanding products they actually process.

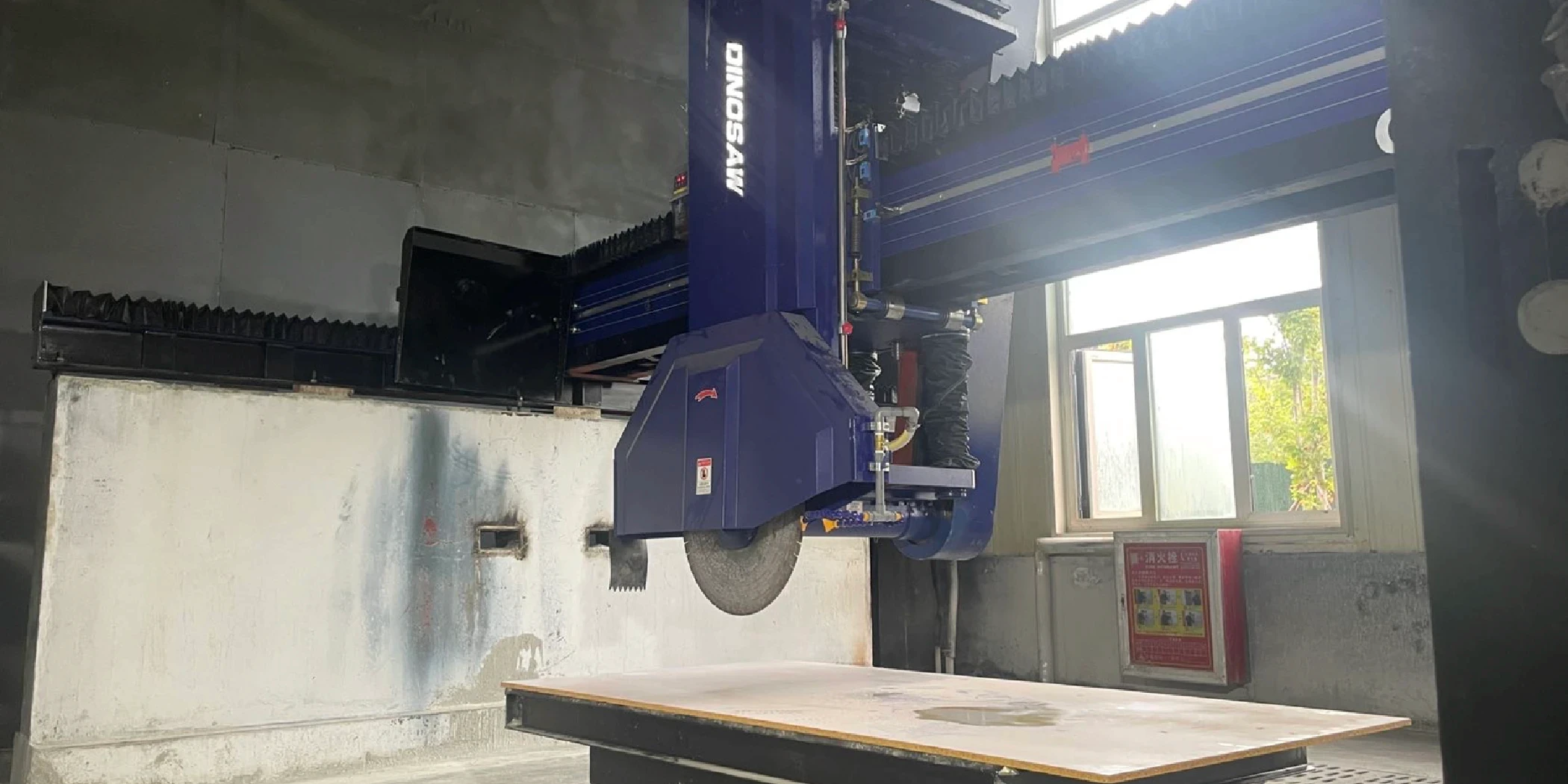

The machine supports 0–85° table tilting and table rotation of 90° or 360°, enabling multiple cutting operations in a single setup.

In practice, this allows:

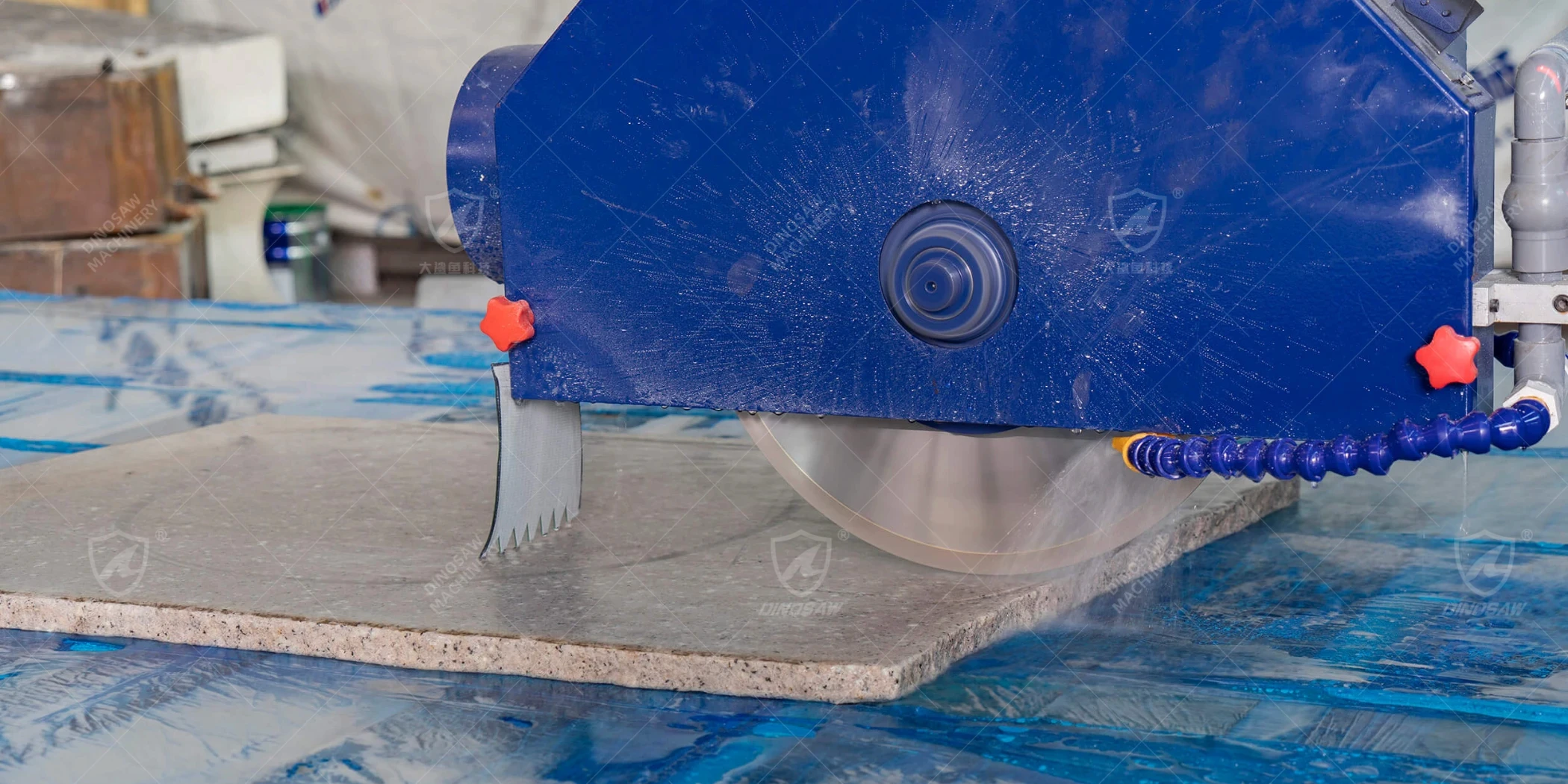

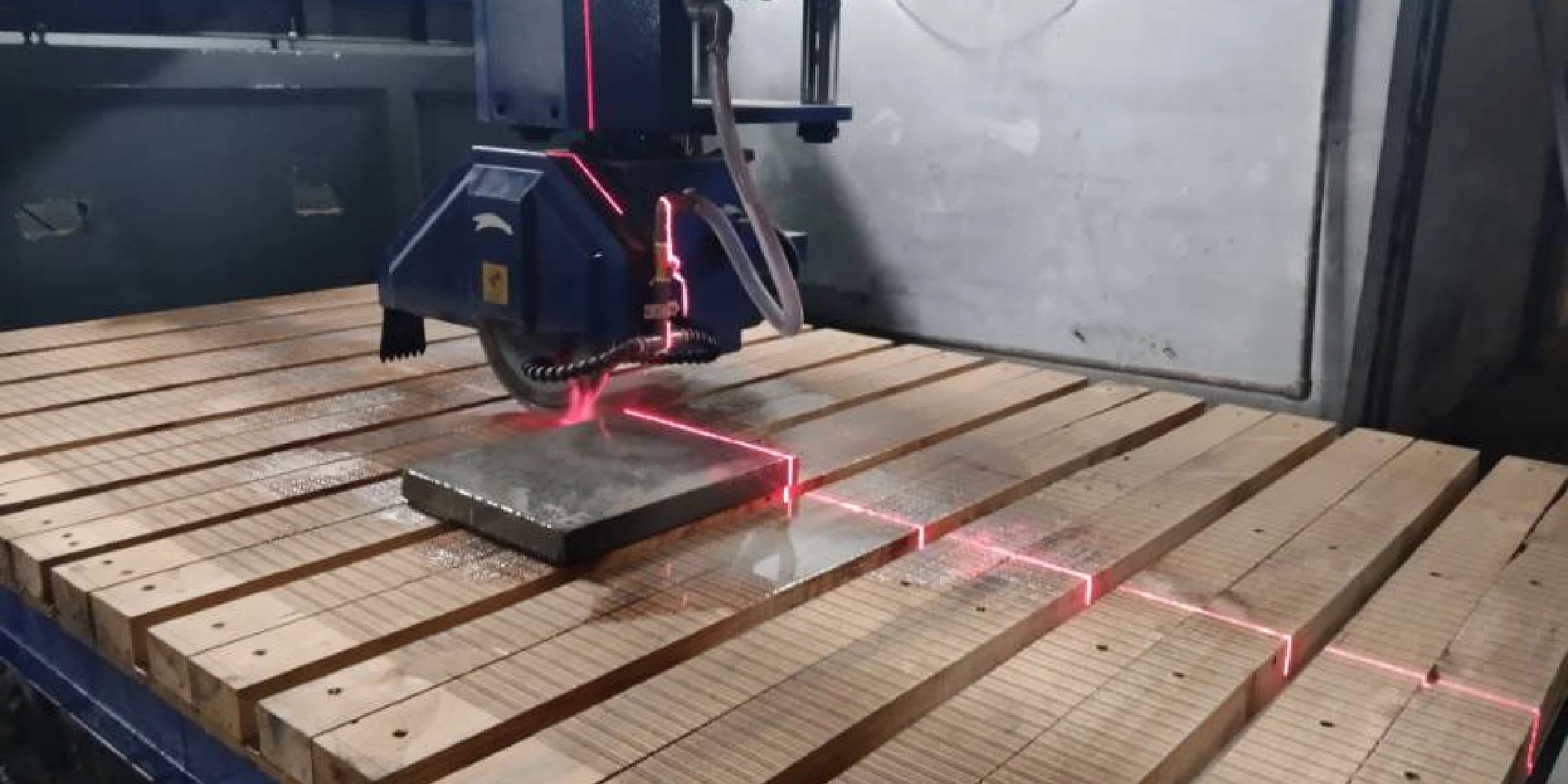

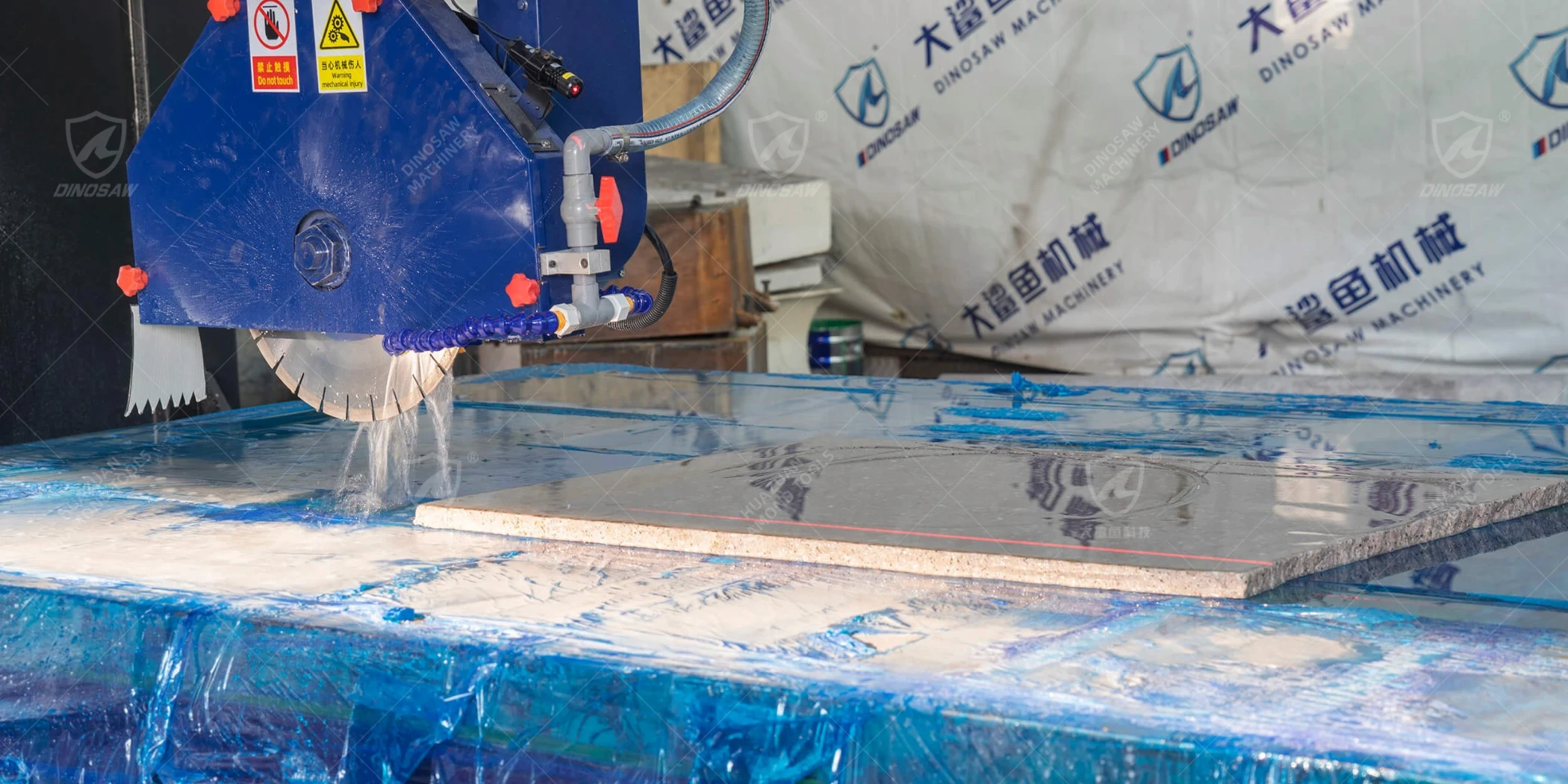

• Straight and diagonal cuts

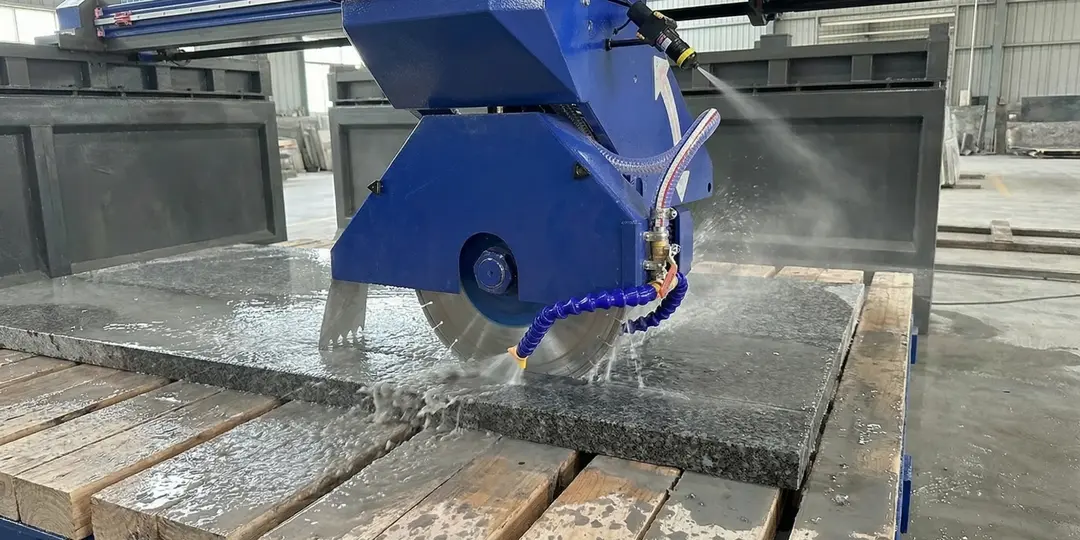

• 45° bevels for countertop joints

• Complex angled cuts without re-positioning the slab

This “one-setup-multiple-operations” capability is especially valuable for custom countertops, where precision and efficiency must be maintained even when layouts change from order to order.

Choosing the right DINOSAW CNC bridge saw depends primarily on your product mix, not just on size specifications.

If your work focuses on standard kitchen and bathroom countertops, a standard configuration is usually sufficient. For thicker slabs, stair treads, or structural components, higher cutting height and stronger drive configurations are recommended.

DINOSAW also offers customized configurations, allowing working range, cutting height, and blade specifications to be matched to real production needs. This ensures you invest in a machine that fully supports your most valuable orders—without unnecessary oversizing.

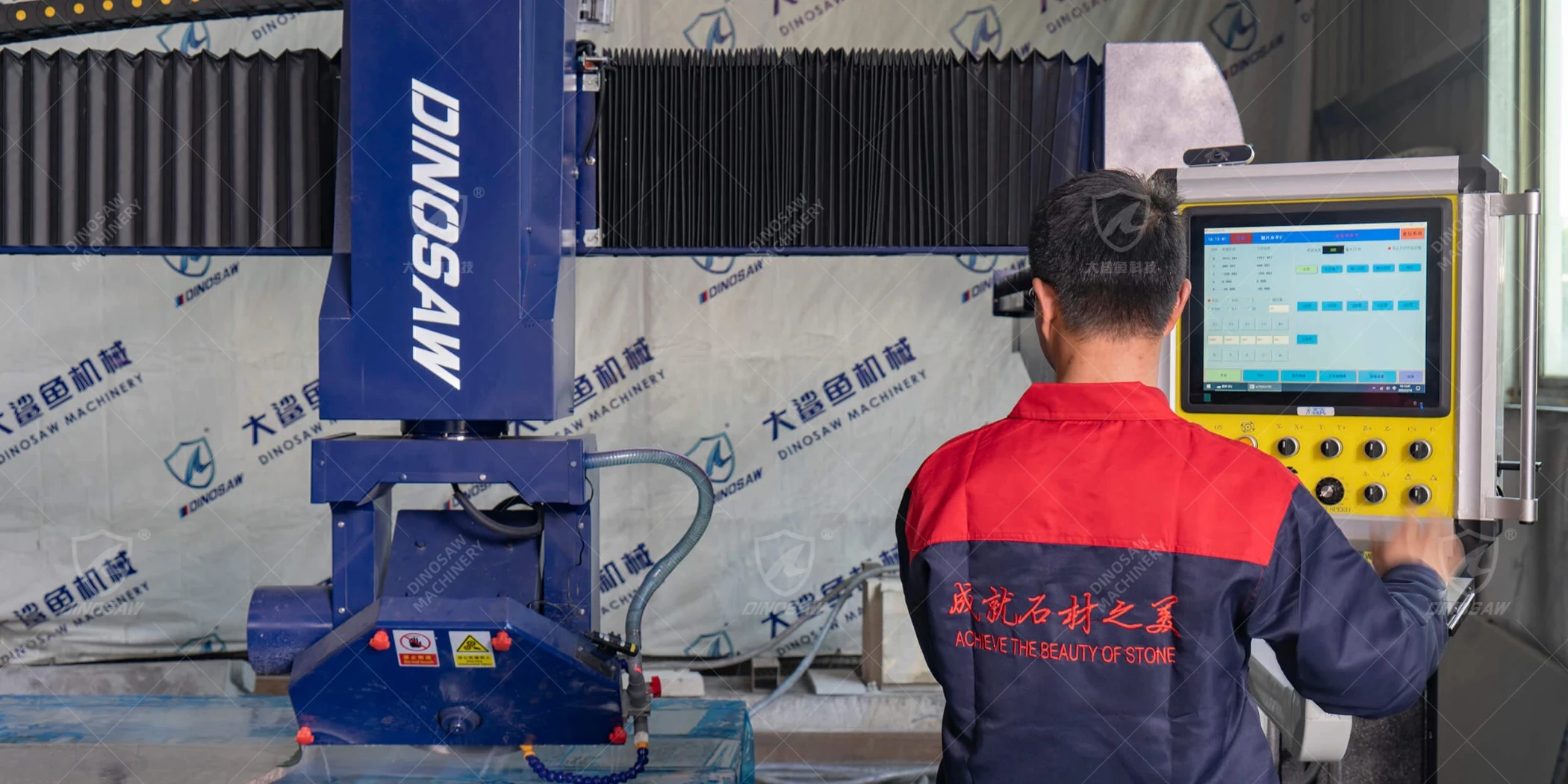

DINOSAW CNC bridge saw is designed to be easy to learn and easy to run, even for operators without prior CNC programming experience.

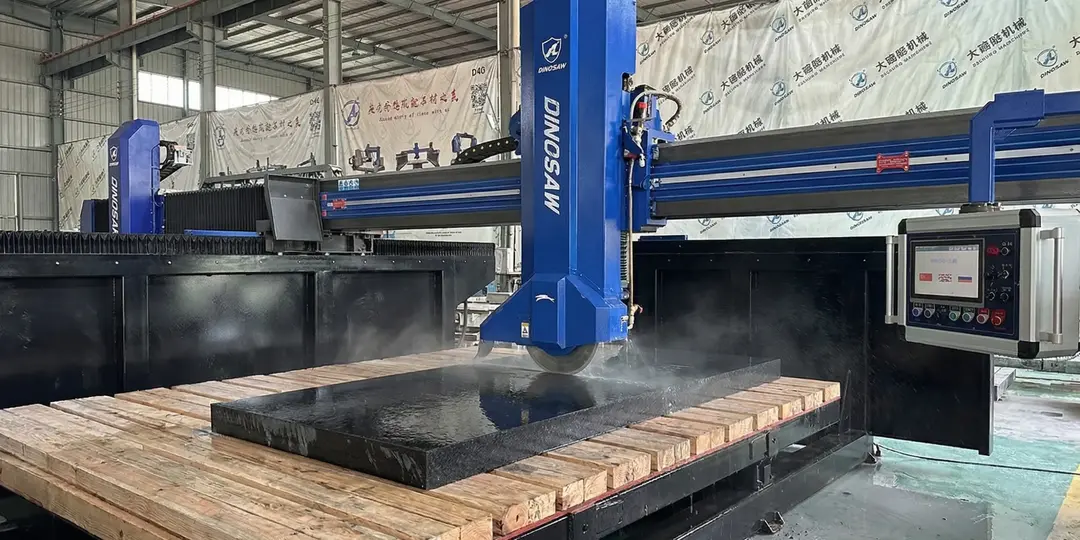

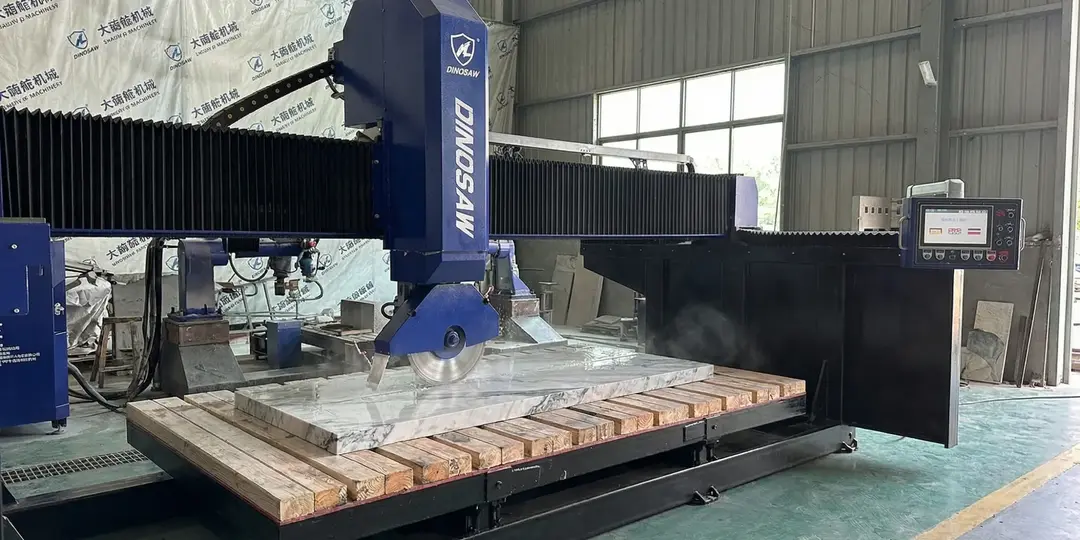

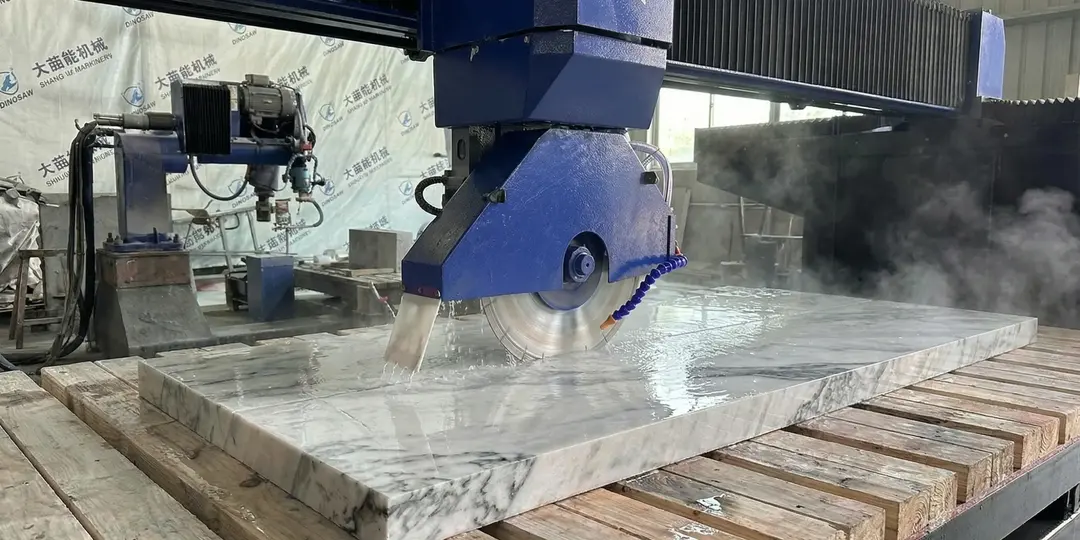

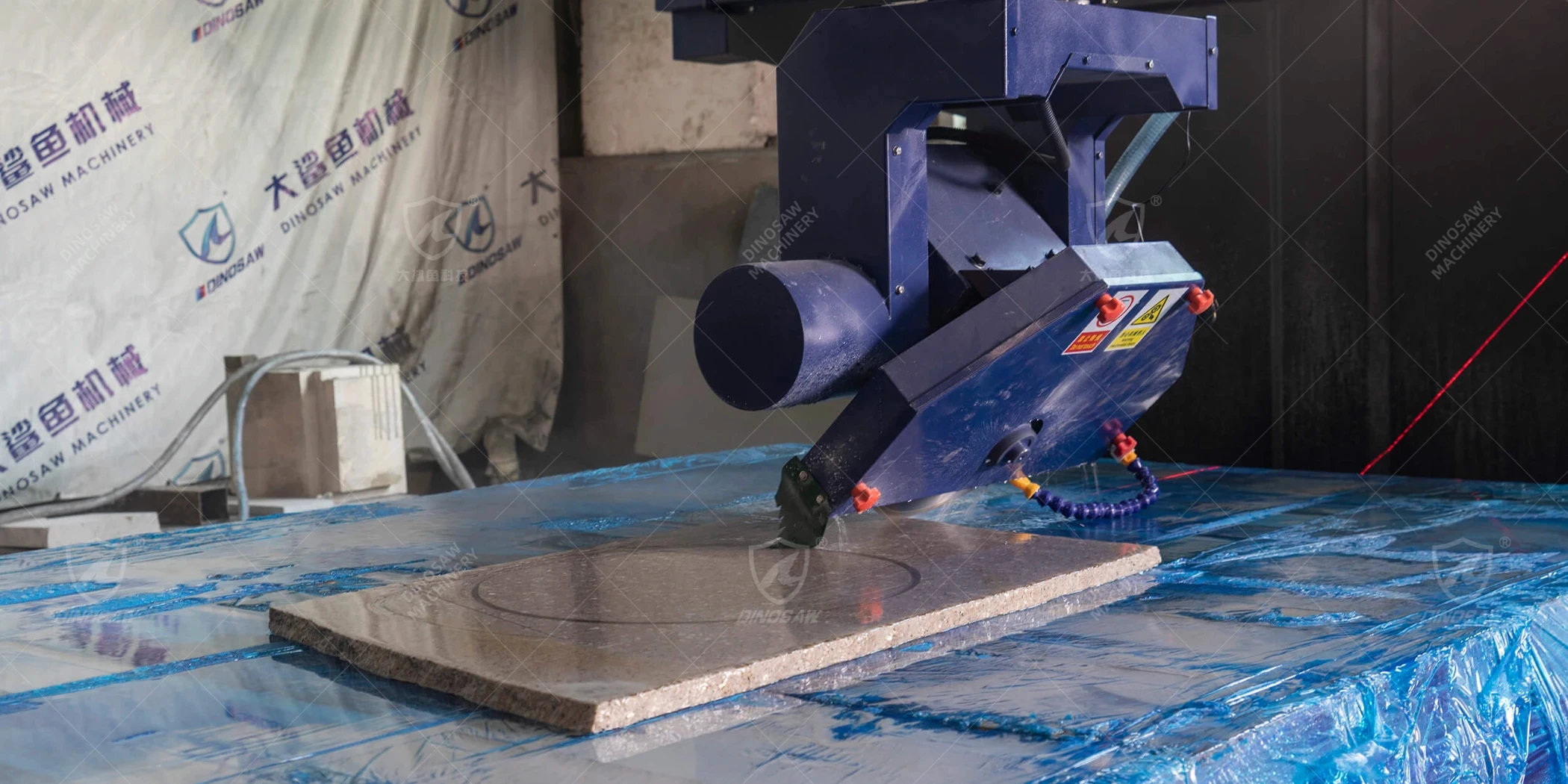

The CNC system allows you to directly import processing drawings, so operators work from ready-made layouts instead of manually setting every cut. Common countertop operations—straight cuts, sink cut-outs, faucet holes, and bevels—are handled through an intuitive interface.

In practice, most workshops can bring operators up to speed quickly, especially if they already have experience with stone cutting or countertop fabrication.

DINOSAW provides complete operational support, not just the machine.

This includes:

• Step-by-step operation tutorials

• Remote technical guidance from engineers

• On-site training when required

If operators encounter new processing tasks or unfamiliar cutting layouts, DINOSAW engineers can assist remotely or on site. This reduces learning risk and ensures the machine is used correctly from the start, rather than relying on trial and error.

Both options are available.

Customers can choose to:

• Install the machine themselves, using provided manuals and remote guidance

• Request DINOSAW engineers for on-site installation and commissioning

For customers planning self-installation, DINOSAW often recommends choosing a mono-block (one-piece) CNC bridge saw, which is easier to transport, position, and install compared to split-structure machines. This option significantly reduces installation complexity, especially for overseas customers.

Installation method has a direct impact on logistics and setup.

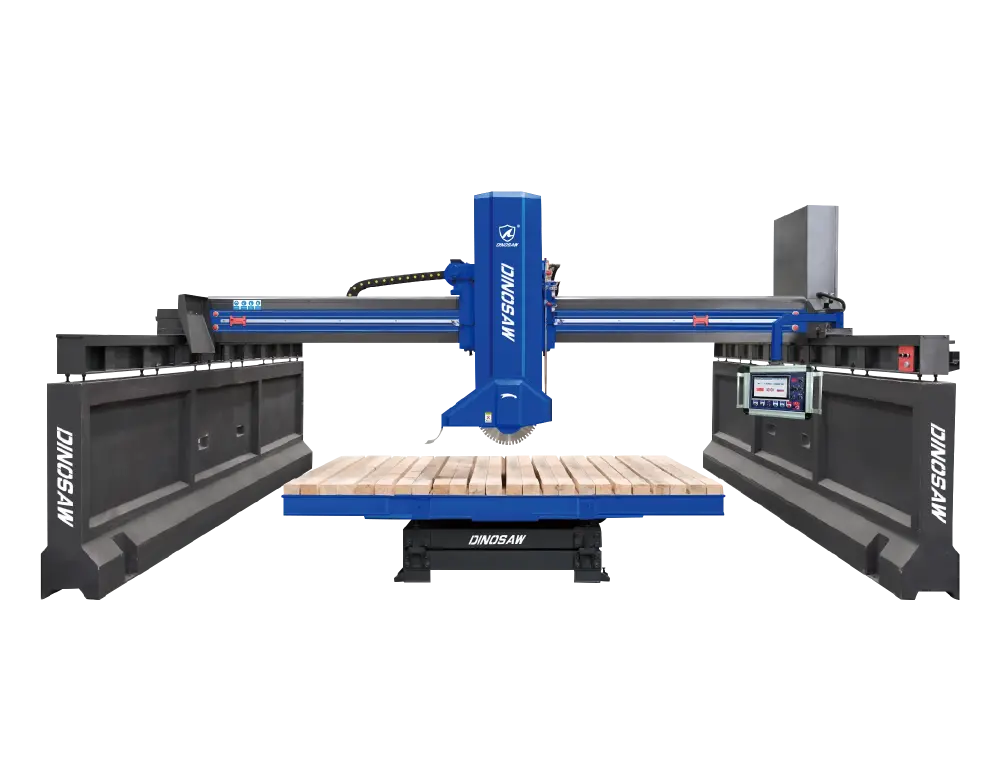

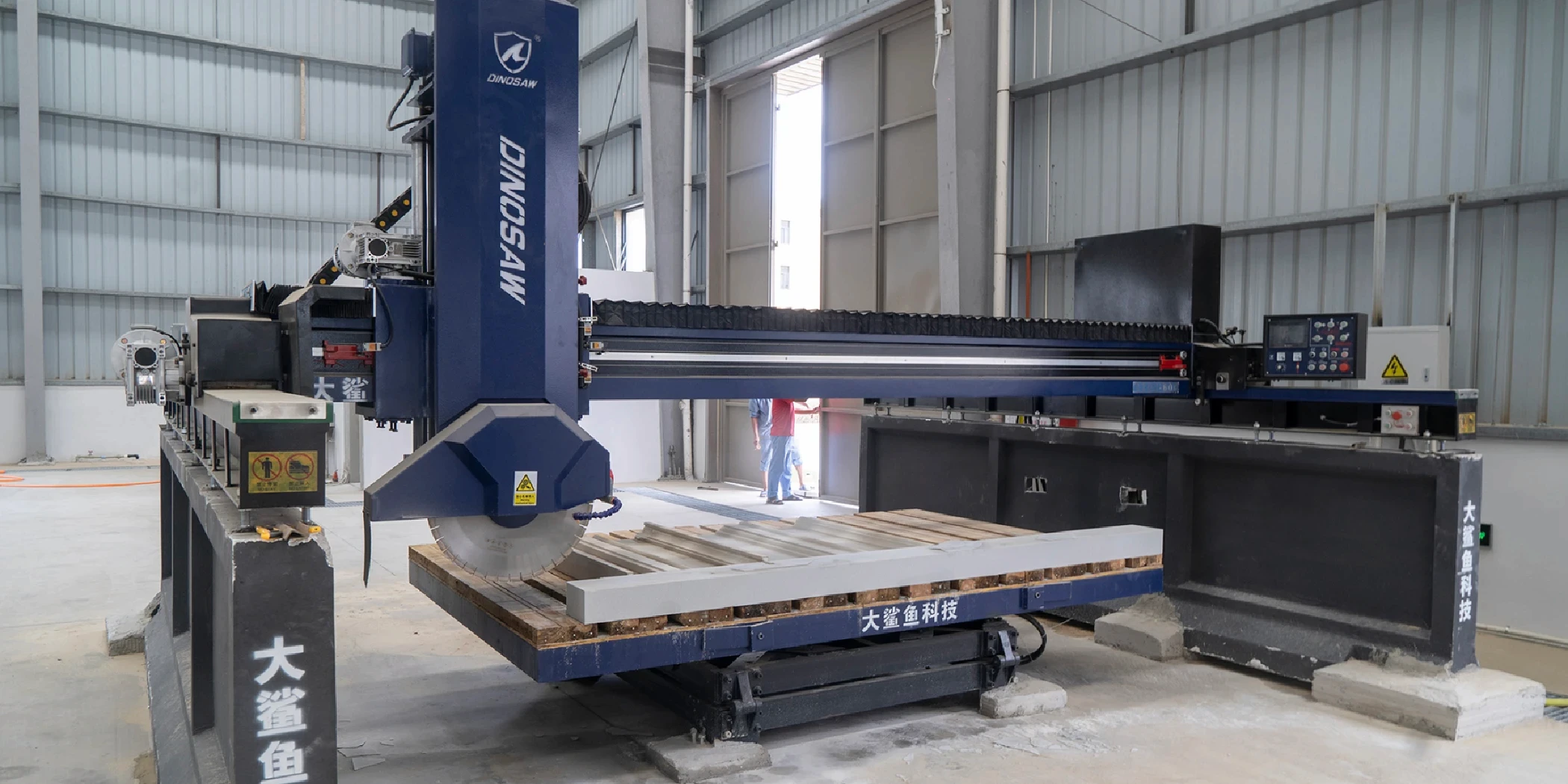

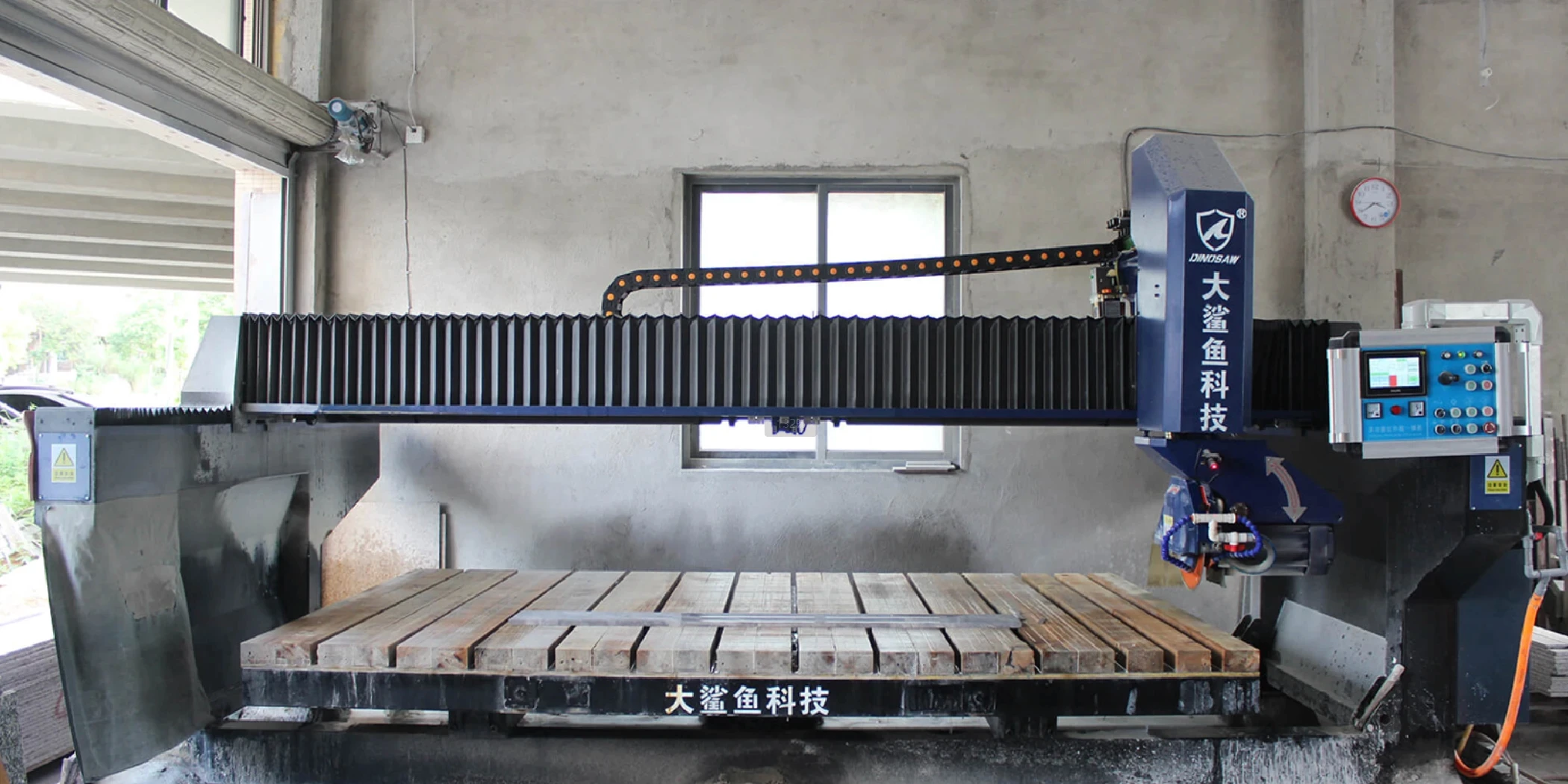

A mono-block CNC bridge saw:

• Ships as a single integrated unit

• Requires less alignment work on site

• Shortens installation and commissioning time

This is particularly useful for workshops with limited space, tight schedules, or limited access to heavy installation equipment. For larger or customized bridge saws, DINOSAW engineers can handle alignment and final tuning on site to ensure optimal performance.

DINOSAW CNC bridge saw is best suited for workshops that:

• Process kitchen countertops, vanity tops, and interior stone products

• Handle frequent custom orders with changing layouts

• Need accurate sink cut-outs, bevels, and joint preparation

• Want stable results without relying heavily on manual experience

With easy-to-use CNC software, flexible installation options, and full technical support, the machine fits both growing workshops and established factories looking to improve consistency and efficiency.

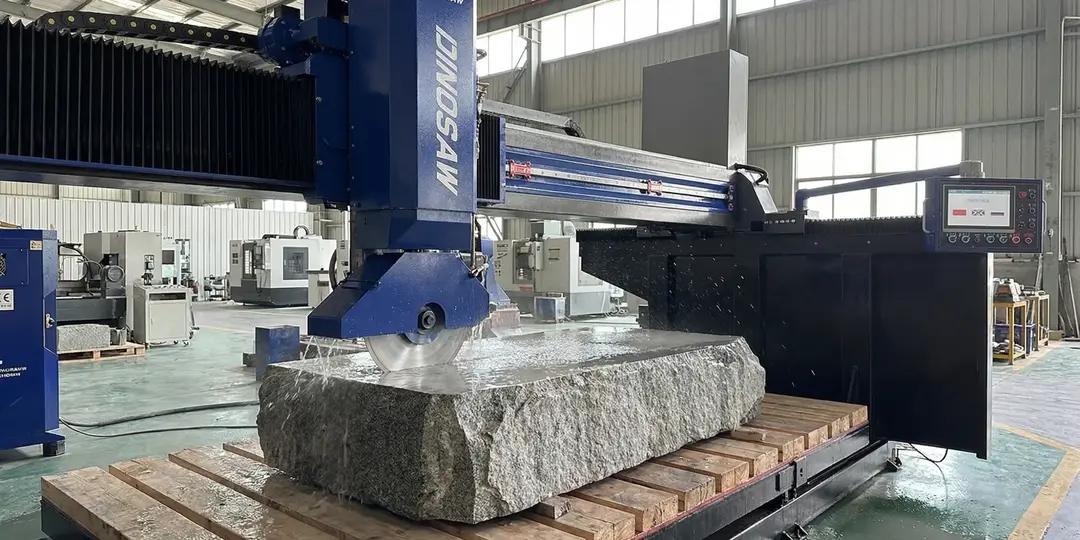

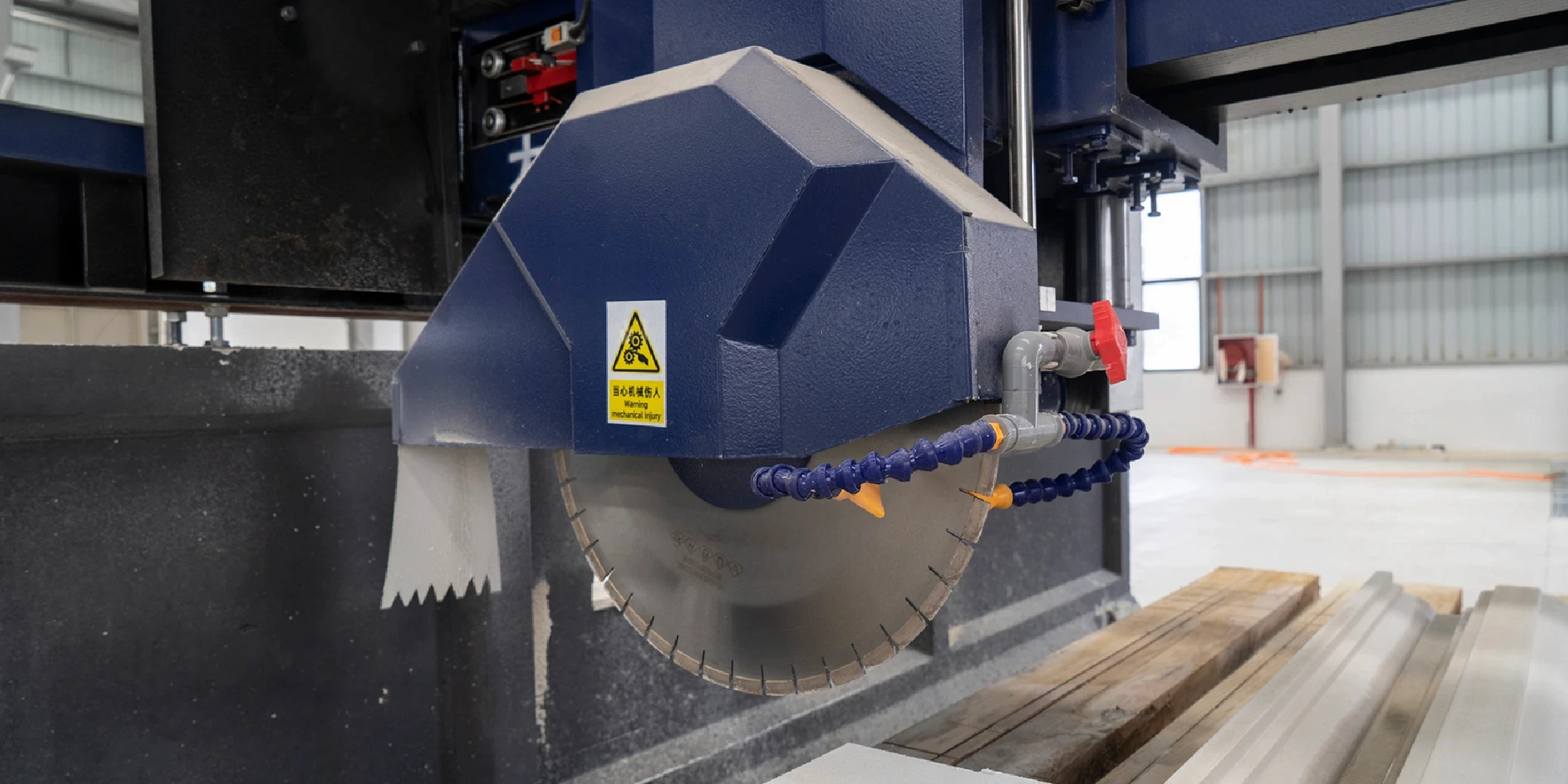

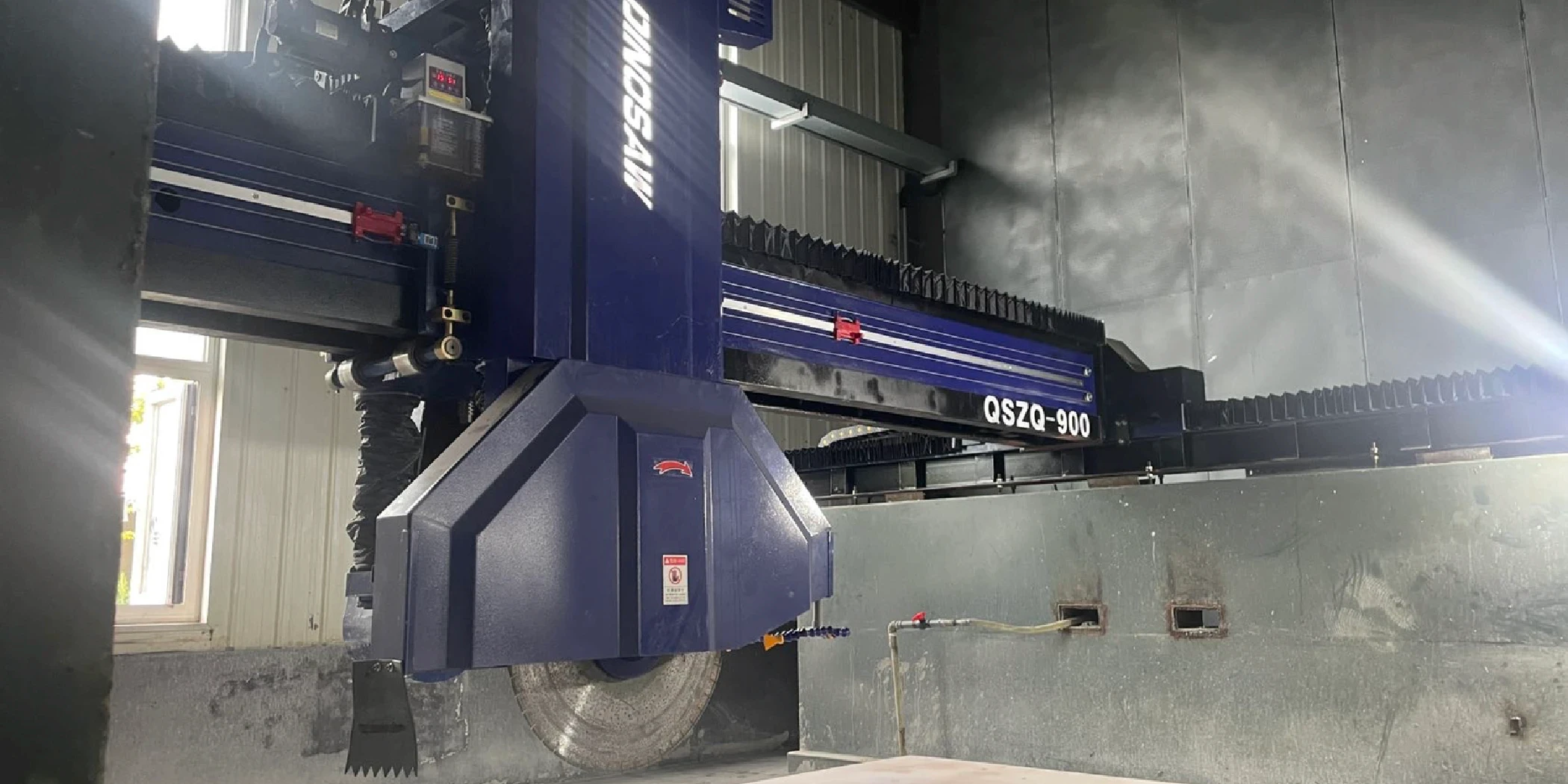

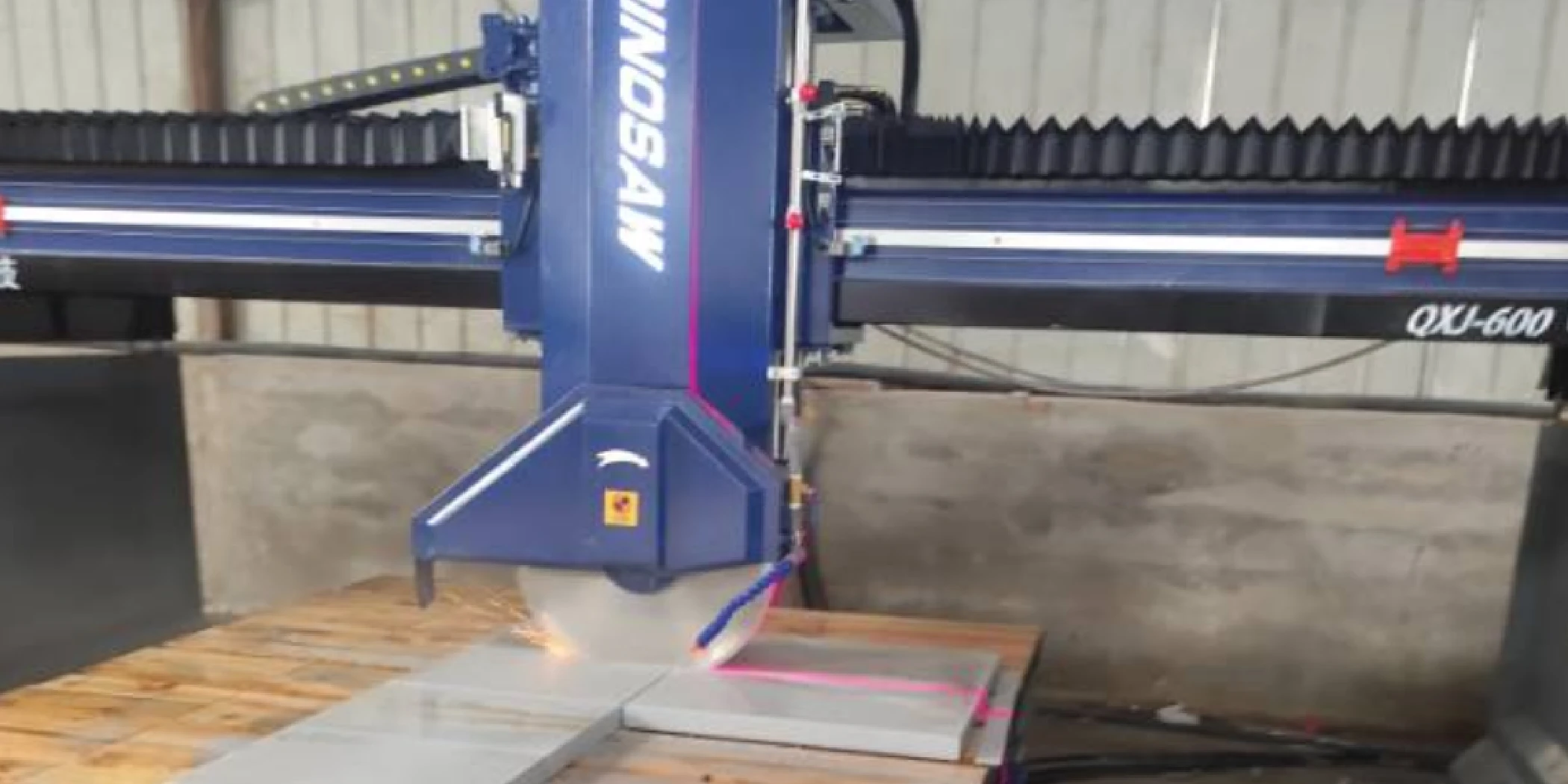

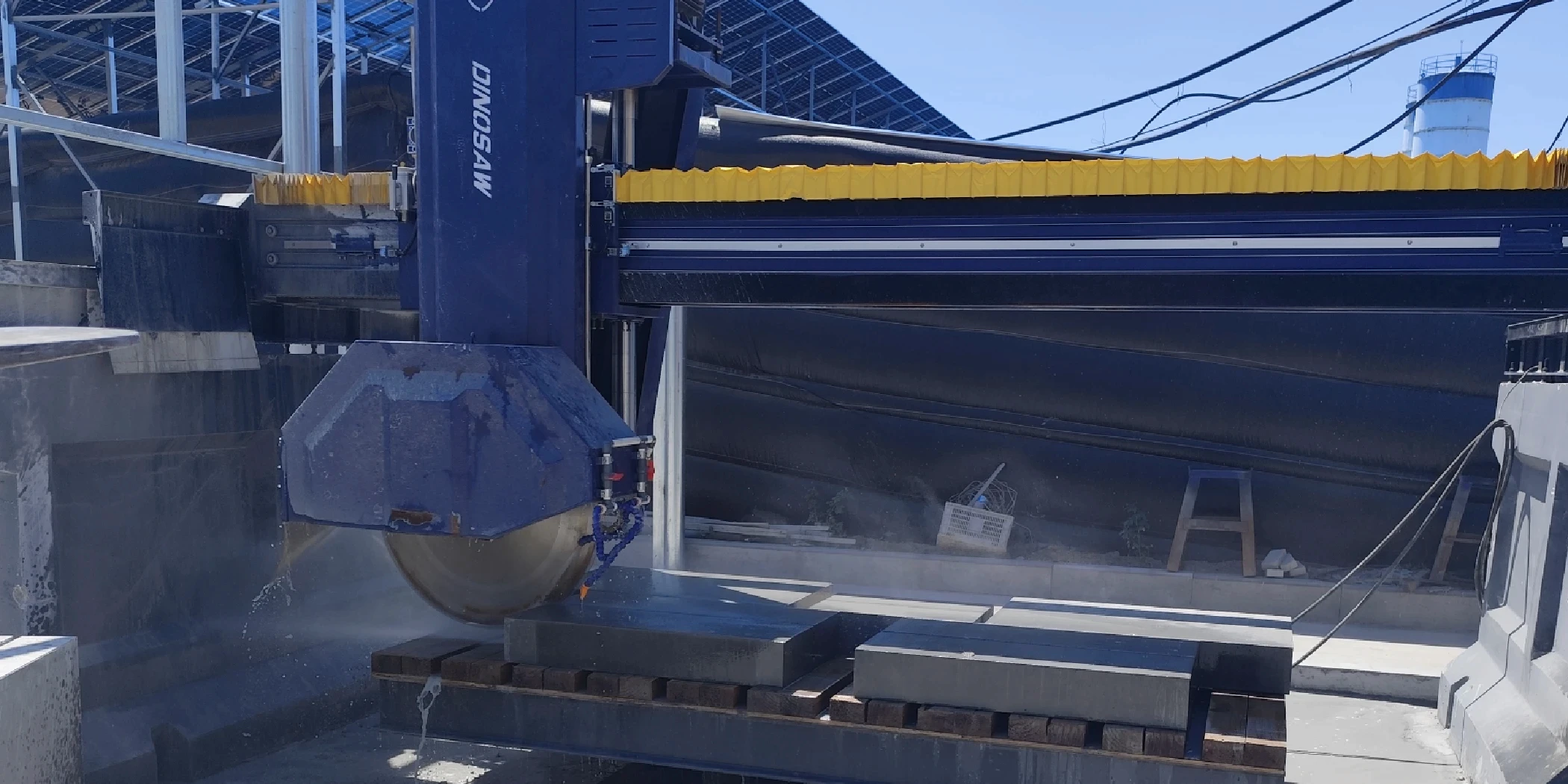

Match the blade to your thickest recurring job, not the thickest you might ever cut: the 400 mm model (15 kW) covers countertops and vanity programs up to 80 mm; the 600 mm (18.5 kW) handles 180 mm slabs for thicker worktops; the 800 mm (22 kW) serves monuments and architectural elements up to 280 mm. All three share the same 3200 × 2000 mm table and control system, so operators move between sizes without retraining.

Usually no. Oversizing adds purchase cost, power demand and blade cost without production benefit when your recurring work is within 80 mm. The practical rule: size for the thickest job you run every week, not the occasional exception. If thick monument work arrives later, shops typically add a second machine rather than oversize the first — and the shared control system means no retraining.
