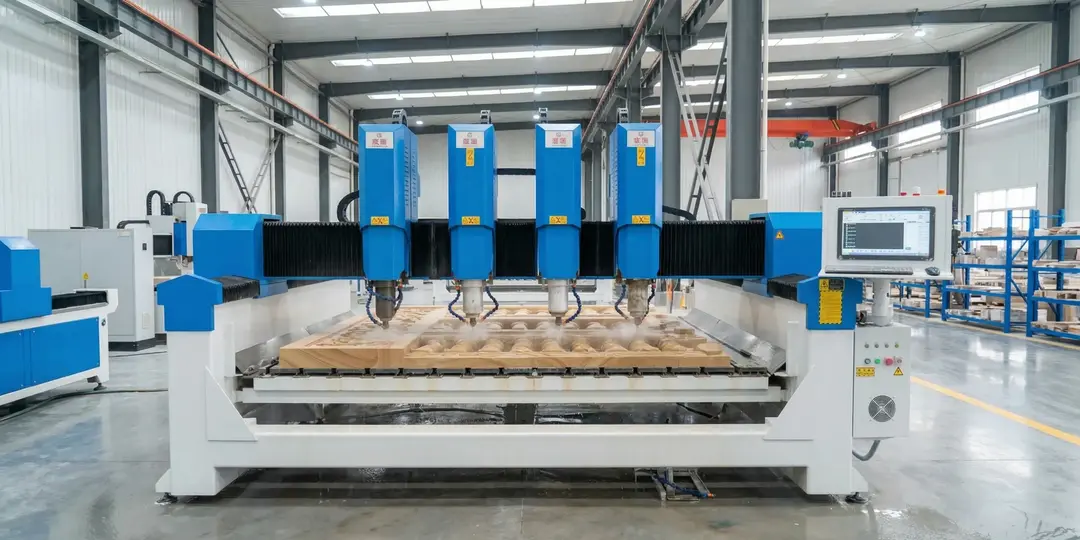

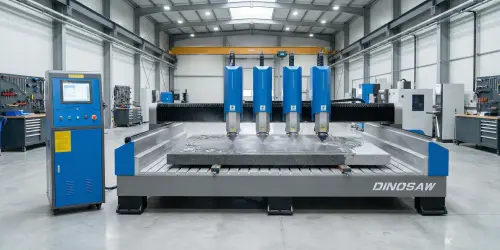

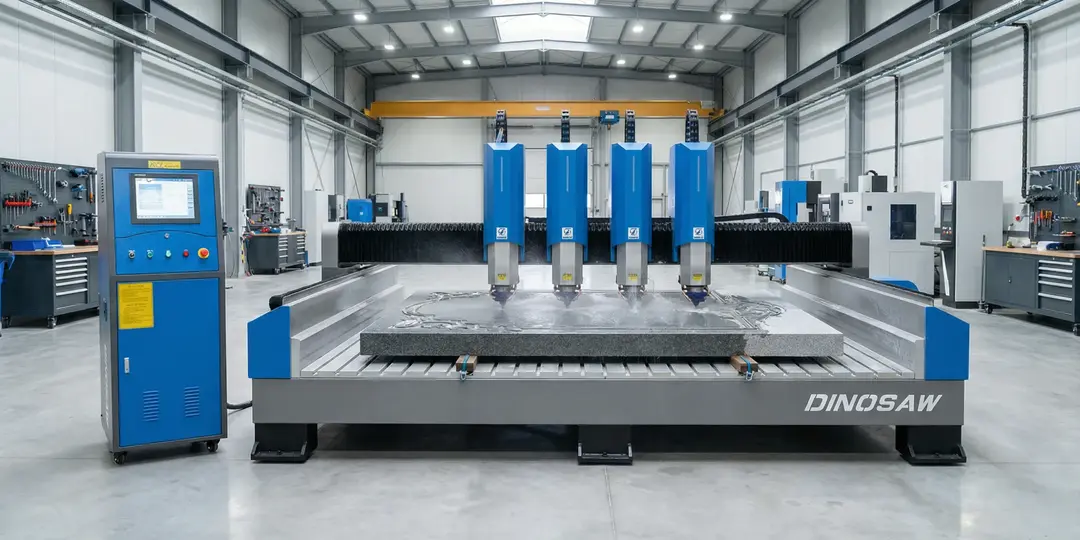

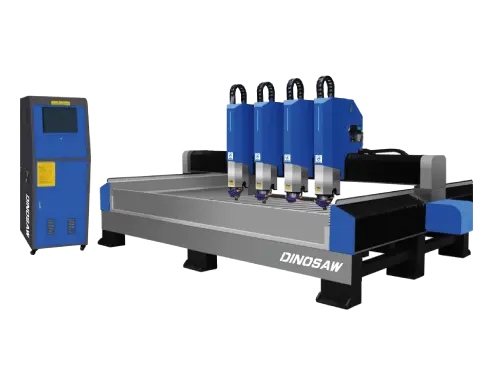

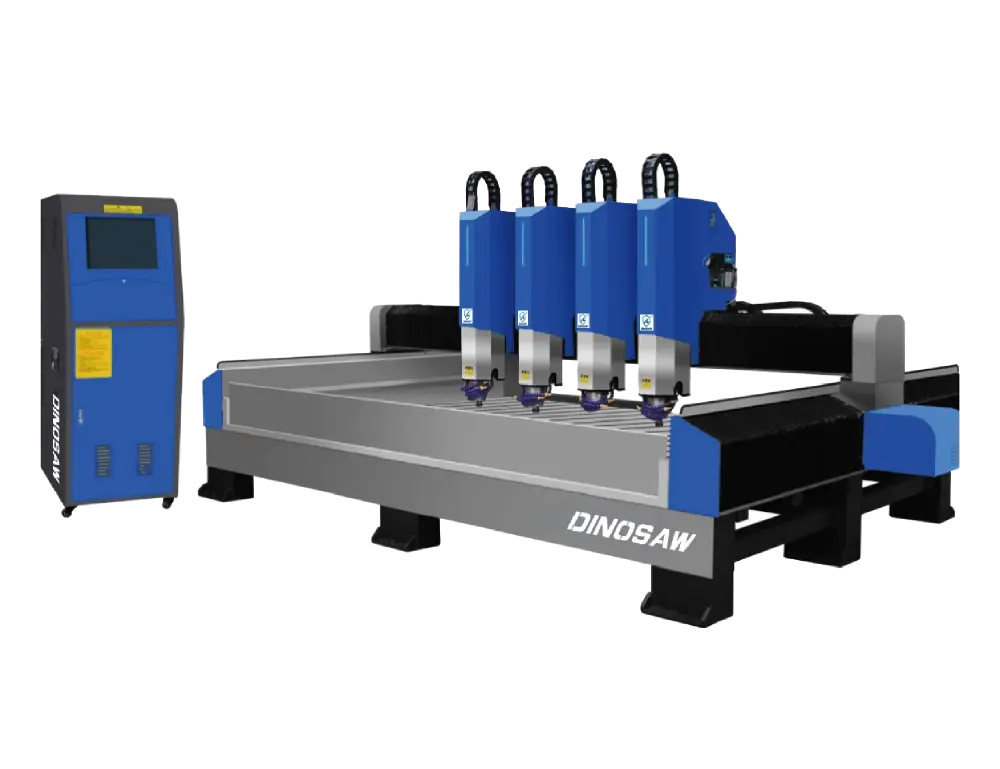

CNC Stone Engraving Machine for Precision Carving
ZDDK-3015/1325
DINOSAW CNC Stone Engraving Machine offers 3-in-1 functionality for flat engraving, relief carving, and 3D sculpture. Features 3-5 axis options, 0.05mm positioning accuracy, 40m/min rapid travel speed, and 35m/min engraving speed.
Processes materials from soft limestone to ultra-hard granite, including marble and sandstone. Suitable for tombstones, monuments, railings, corbels, decorative panels, and artistic sculptures.
Compatible Materials & Products
Granite to Sandstone: Memorial, Art & Architectural Applications

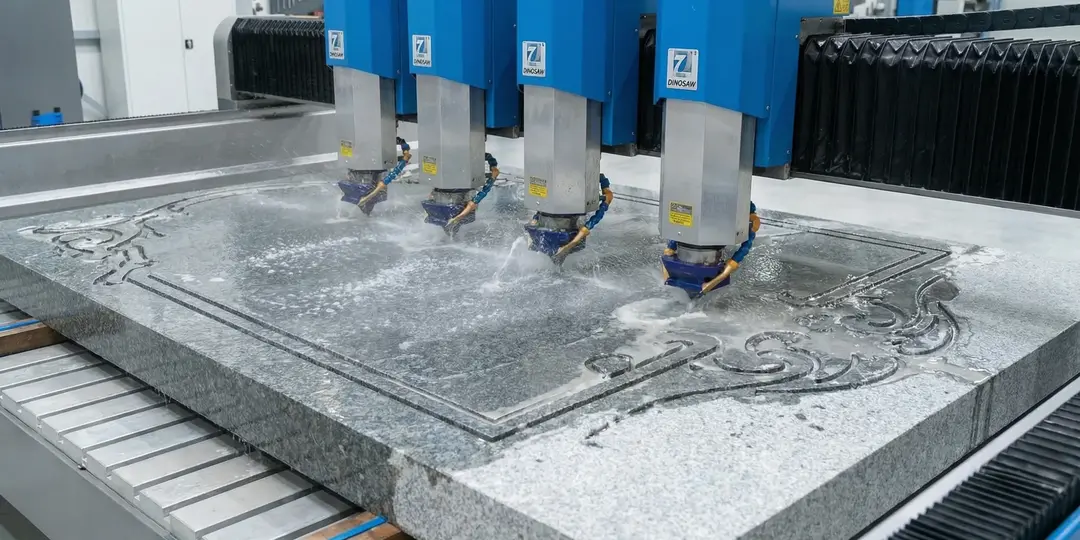

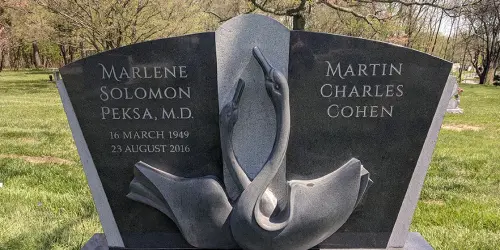

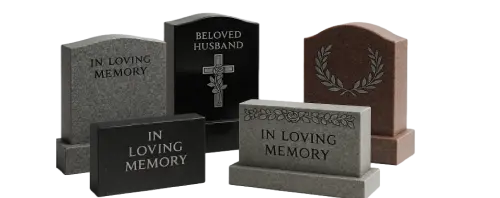

Granite ❯ Tombstones & Memorials
 |
Granite memorials demand exceptional durability and precision detailing. DINOSAW machines utilize high-torque spindles and diamond carving bits specifically designed for Mohs 7 hardness materials, ensuring clean cuts through challenging granite compositions while maintaining tool longevity. Advanced 3D simulation prevents tool collisions during intricate religious figure carving. Automated depth control delivers consistent lettering across multilingual epitaphs, eliminating the 18% rejection rate common in manual stone carving operations. |

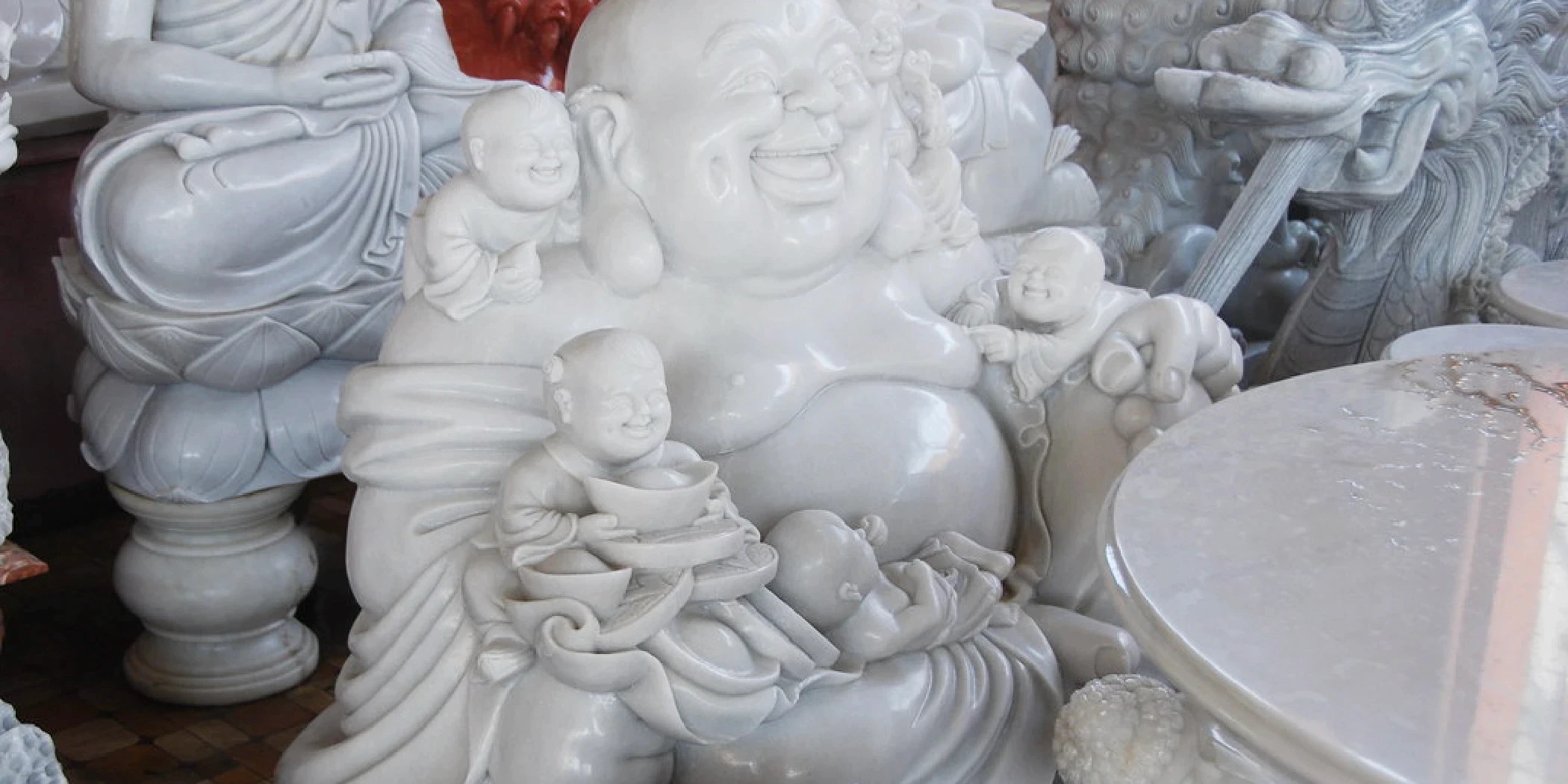

Marble ❯ Artistic Sculptures
 |

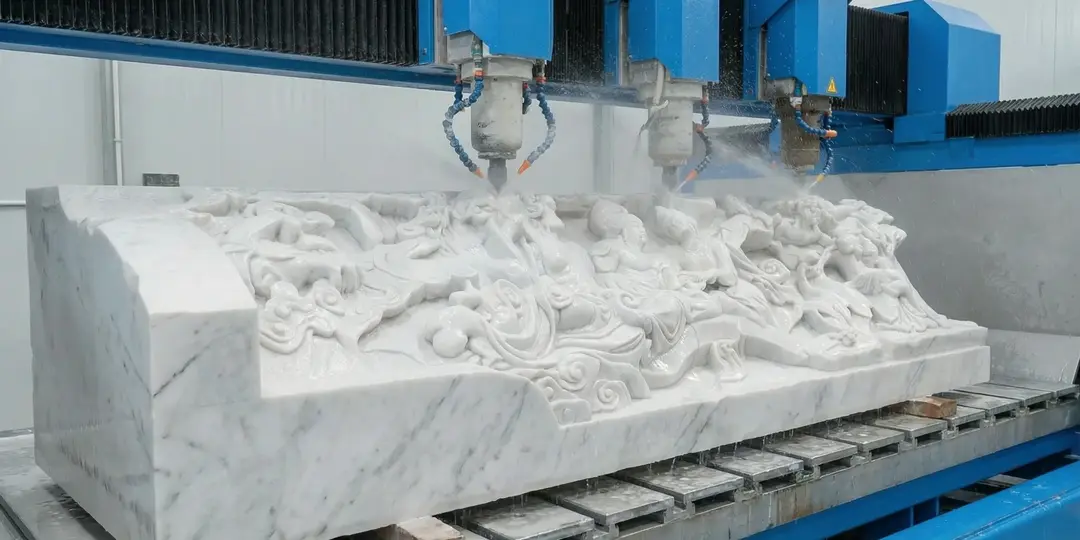

Artistic marble sculptures require exceptional precision and detailed rendering capabilities. Our CNC systems excel at 3D contour following with adaptive toolpath optimization, achieving 0.02mm detail accuracy for complex artistic features. |
Specialized cooling systems prevent thermal cracking while processing delicate marble veins. This precision enables artists to create museum-quality sculptures with 75% less hand-finishing time compared to traditional sculpting methods.

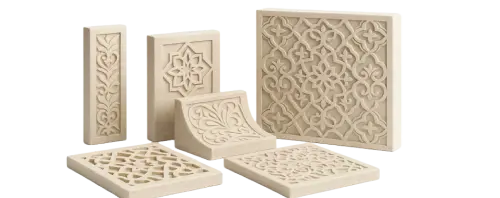

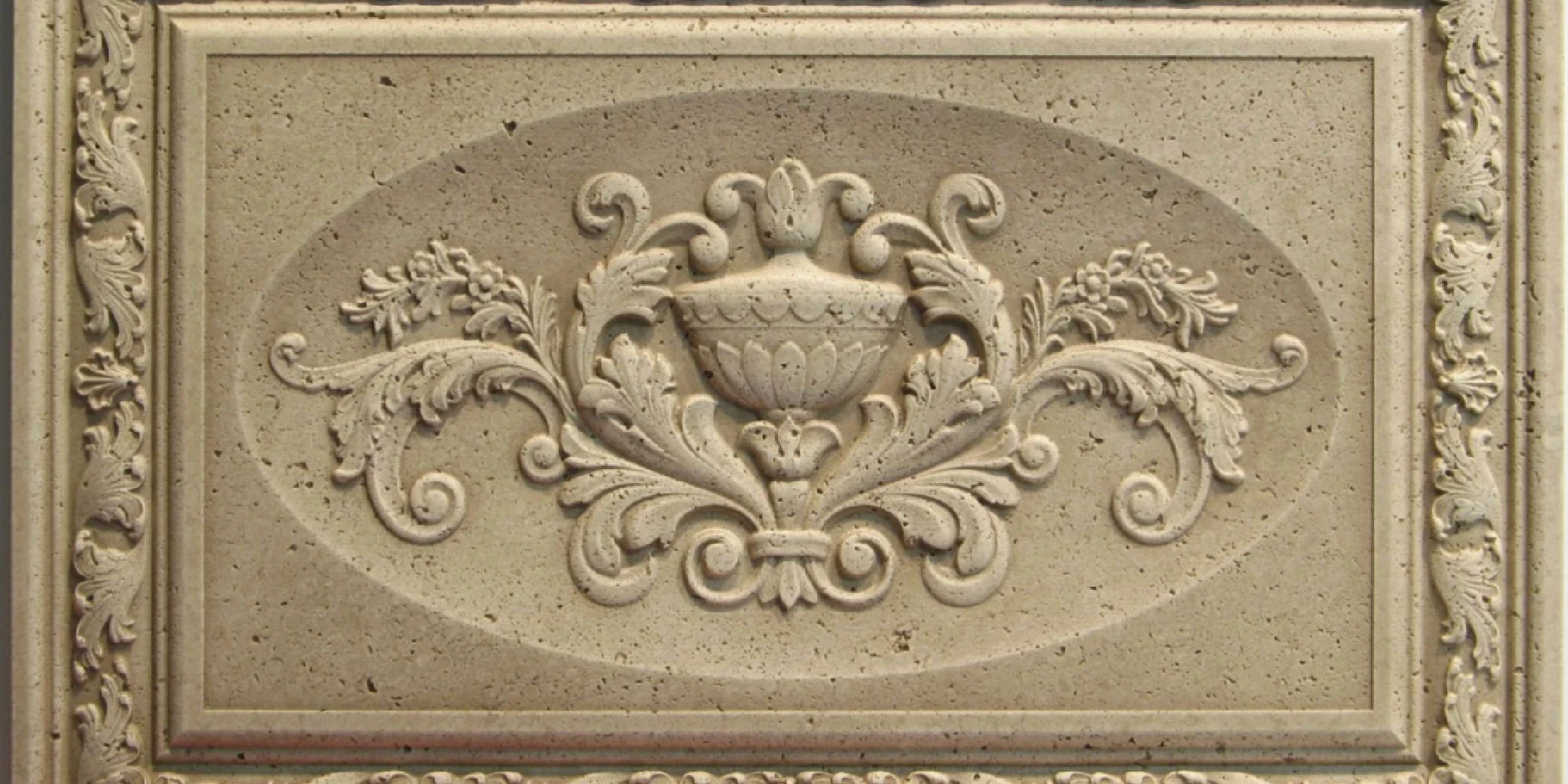

Limestone ❯ Decorative Panels
 |
Decorative limestone panels for luxury interiors demand intricate detail work and consistent depth control. Our precision-ground ball screws deliver 0.01mm repeatability positioning for delicate foliage patterns and ornamental designs across soft limestone surfaces. |
Intelligent speed control prevents chipping while maintaining productivity on detailed relief work. Interior designers achieve museum-quality decorative elements with 3x faster production compared to traditional hand-carving methods.

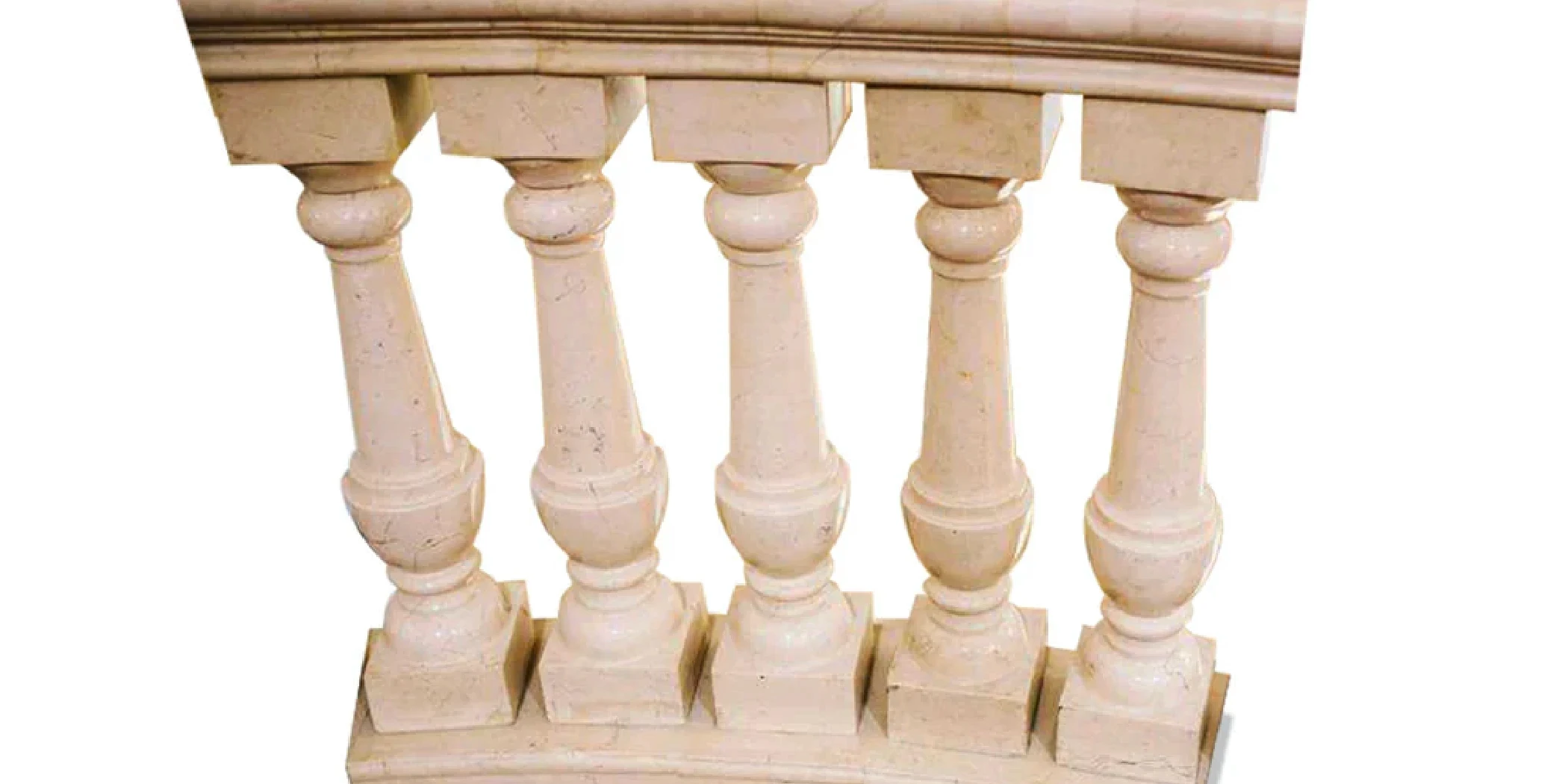

Sandstone ❯ Railings
Sandstone railings provide elegant aesthetics with natural variations in texture and color. Our CNC systems deliver precise cuts and detailed patterns in this moderately soft material (Mohs 3-6), allowing intricate designs and curved elements for custom balustrades.
Specialized speed and pressure settings prevent edge chipping while ensuring clean detailing. The natural porosity of sandstone is sealed after machining, creating weather-resistant architectural elements that maintain their beauty in various environments.
▶ Product Demo
Memorial Manufacturing
Eliminating 92% Defects in Granite Monument Production
Italian manufacturer faced 45% scrap rates from manual carving inconsistencies. DINOSAW CNC with 6mm diamond tools achieved 0.1mm font consistency across multilingual epitaphs, increasing daily output from 3 to 15 pieces while eliminating customer rejections.
Architectural Projects
Precision Facade Carving for 8,000m² Limestone Project
Dubai firm needed arabesque patterns on limestone facades. 2000×3000mm worktable with automatic tool changer maintained 0.05mm variance throughout 4-month production, ensuring geometric consistency across the entire building exterior.
Artistic Sculpture

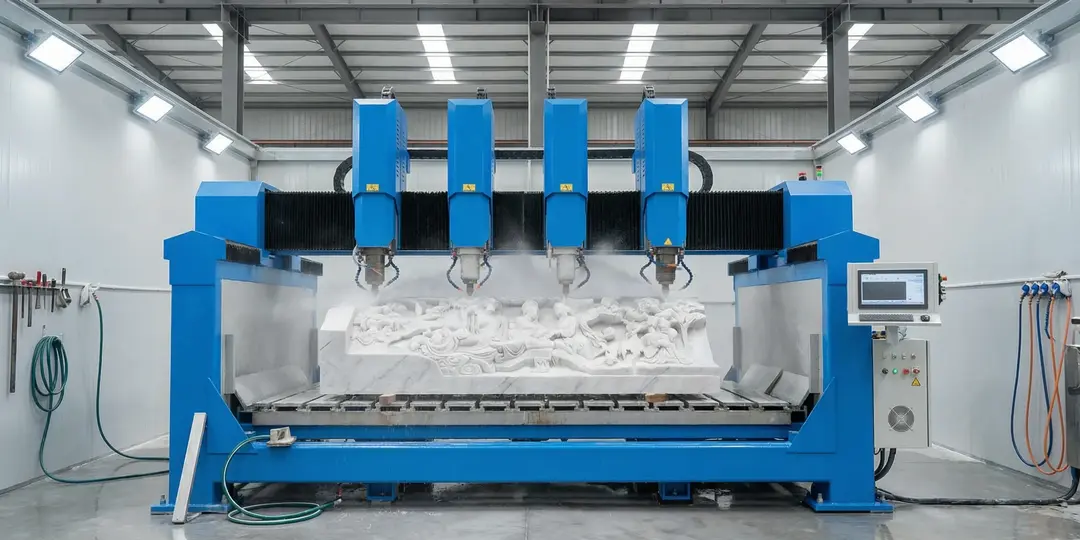

Converting 3D Scans to Stone Masterpieces
Artist needed exact replication of clay models in stone materials. 3D capabilities achieved <1% dimensional variance when processing basalt and marble, allowing artists to focus on creativity while machines handled precision execution.
Specs and options
Specifications customizable upon request.
| Product Model | ZDDK-1318 | ZDDK-1325 | ZDDK-1825 | ZDDK-2025 | ZDDK-2030 |
|---|---|---|---|---|---|
| Platform Size /mm | 1300×1800 | 1300×2500 | 1800×2500 | 2000×2500 | 2000×3000 |
| Feeding Height /mm | 380/430/450/530/600 | ||||
| Idle Speed /(m/min) | 40 | ||||
| Processing Speed /(m/min) | 35 | ||||
| Spindle Power | 7.5kW Variable - frequency Water - cooled Motor | ||||
| Spindle Speed /(rpm/min) | 6000 or 24000 | ||||
| Working Voltage | AC380V / 50Hz | ||||
| Engraving Tools /mm | 3.175/4/6/12.7 | ||||
| File Format | G - code / HPGL | ||||
| Positioning Accuracy /mm | 0.05 | ||||
| Repeat Positioning Accuracy /mm | 0.01 | ||||
| Control System | Nc Studio System | ||||
Advanced engineering meets practical design excellence.
Precision. Power. Performance.
User-Friendly Operation
Built-in pattern library and CAD import capability simplify workflow.
35m/min High-Speed Engraving
7.5kW stone-specific spindle with 40m/min rapid travel speed delivers industrial-grade power
±0.05mm Ultra-High Precision
Full servo system control ensures exceptional accuracy
Resume Carving After Power Outage
Brake motor system prevents tool dropping during power failures.
Enhanced Structural Stability
Triple-reinforced beam and galvanized components
Reduced Maintenance Requirements
Oil-immersed guide rails and stainless steel water tank minimize maintenance needs
FAQs
Common Questions About CNC Stone Engraving Machine
How do I choose the right number of spindles for my engraving machine?

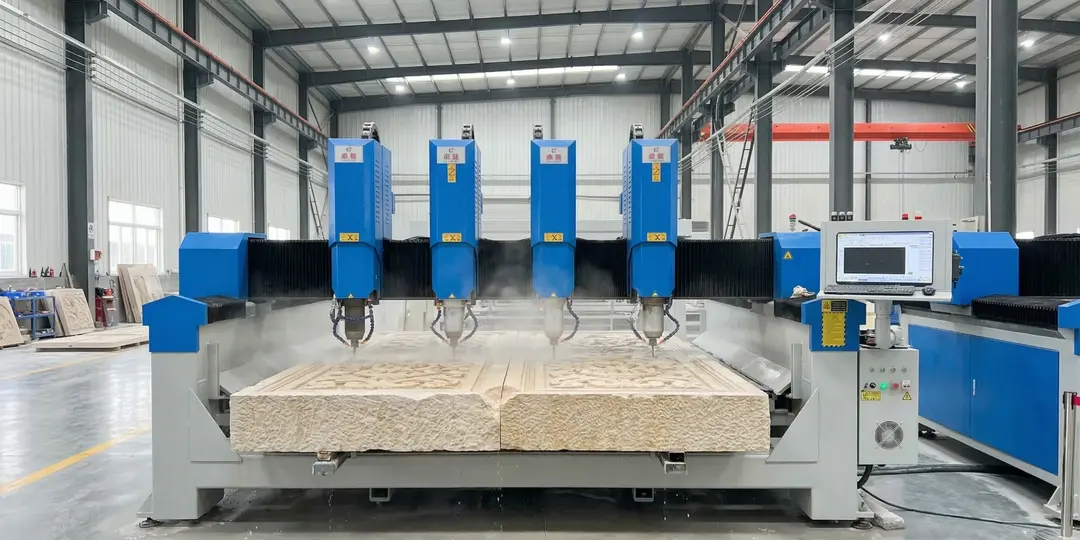

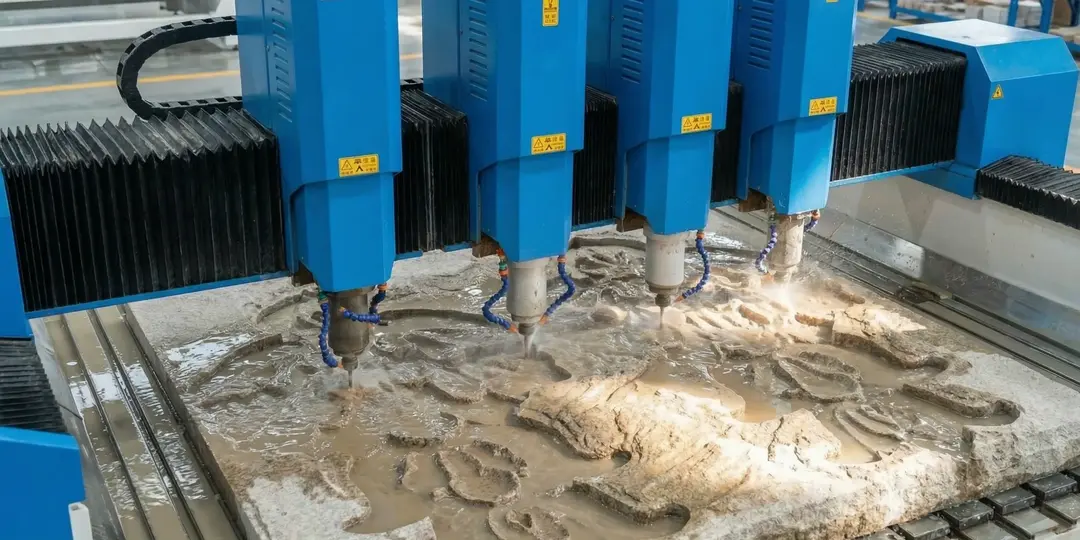

For tombstones and memorial applications, 1-2 spindles are typically sufficient for detailed work on individual pieces. For batch production of smaller items like relief blocks, railings, decorative elements, and tea trays, 3-4 spindles significantly increase efficiency by allowing simultaneous carving of multiple pieces. Your production volume and typical job size should guide your configuration choice.
What stone materials can this machine process effectively?
Our CNC stone engraving machine handles all major stone types including granite (Mohs 6-8), marble, limestone, basalt, and engineered stone. Specialized diamond tooling and variable speed control optimize performance for each material's unique properties, from soft limestone to ultra-hard granite composites.
How does CNC stone engraving compare to laser engraving?
CNC diamond engraving excels at deep carving and 3D sculptural work, while laser is limited to surface marking. Our diamond tools provide adjustable depth control, superior durability, and work effectively on reflective stones where lasers struggle. CNC also requires lower maintenance than laser systems.
How much training is required to operate the machine?
Basic operation training takes 3-5 days for experienced CNC operators. Our NcStudio control system features intuitive interface and 3D simulation for collision prevention. Comprehensive training materials and ongoing technical support ensure quick proficiency development.
What maintenance schedule should I follow?
Daily lubrication of guide rails, weekly spindle inspection, and monthly calibration checks maintain peak performance. Critical components are rated for 15,000+ operational hours. Our global service network provides local maintenance support with 30% faster response times than competitors.
