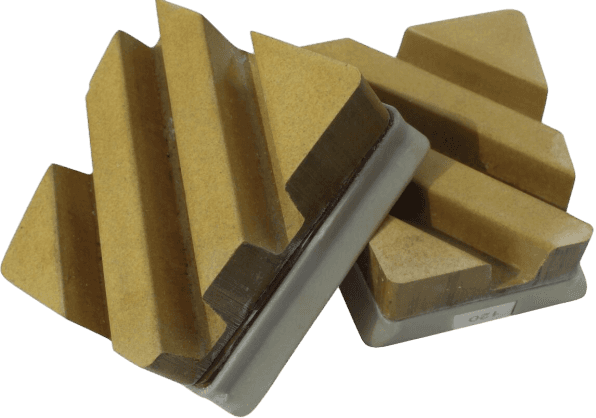

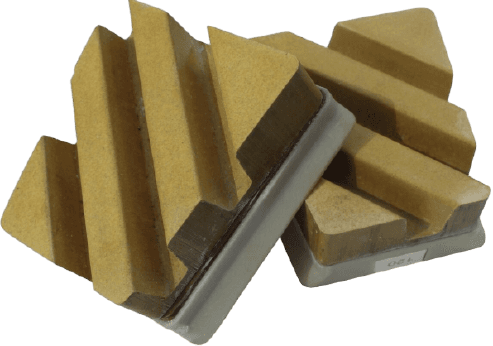

Resin Bond Diamond Frankfurt Abrasives for Stone Slab Polishing

Resin bond Frankfurts cover the finishing stage, roughly 40# through 3000# plus BUFF; outside that window, adjacent DINOSAW products are the right choice. For the grinding stage that removes saw marks and levels the slab — where aggressive stock removal and impact loading dominate — choose metal bond diamond Frankfurts, which hold their form under the loads that would strip a resin matrix. For very low-volume or restoration polishing where the machine runs only occasionally, the traditional magnesite or synthetic program remains a rational, low-cost option despite its short life. And if your machine uses a fickert-style holder rather than a Frankfurt head, choose the resin bond fickert: the abrasive technology is similar but the holder geometry is different, so the two are not interchangeable. Choose the resin bond Frankfurt when you run production polishing on granite, marble, engineered quartz or terrazzo and want one continuous program from initial polish through the buff step with the fewest possible tool changes. A practical selection sequence: confirm your holder format first, then the stone and starting surface condition, then map the required finish against the grit ladder — rougher starting surfaces begin at 40# or 60#, while surfaces already ground can start at 120# or finer, saving both time and abrasive cost.

The DINOSAW resin bond Frankfurt program spans 16 grits — 40#, 60#, 80#, 100#, 120#, 180#, 220#, 320#, 400#, 600#, 800#, 1000#, 1200#, 1500#, 2000# and 3000# — followed by the BUFF step for the final gloss. The standard rule is to never skip more than one or two grit steps, because each step must remove the scratch pattern the previous step left behind: jumping from 120# to 400#, for example, forces the 400# abrasive to do removal work it is not designed for, which shortens its life and can leave scratches that only reappear after the buff. A typical granite program runs 60# or 80# to remove the marks left by the metal bond grinding stage, then 120#–220# for honing, 400#–800# for smoothing, 1200#–3000# for pre-polish, and BUFF for final gloss. Marble and softer stones can usually start finer and finish earlier, while engineered quartz often needs the full ladder to close the surface before buffing. Because every step uses the same Frankfurt holder, changing grits is a seat-and-lock swap rather than a holder change, which is what keeps the long resin-bond runs efficient in daily operation.

To quote resin bond diamond Frankfurts accurately, send five pieces of information. First, your machine: brand, model and polishing-head type, with the holder format confirmed as Frankfurt — this fixes the mounting geometry and the number of abrasives per head. Second, your stone: granite, marble, engineered quartz, terrazzo or another material, plus its hardness and color, because resin formulation and diamond grade are selected against the stone's abrasiveness. Third, the surface condition before polishing — whether slabs arrive from a metal bond grinding stage, from a calibrating machine, or already partially polished — which determines the starting grit. Fourth, your target finish: honed, satin or high gloss, which defines how far up the ladder the program must run and whether BUFF is required. Fifth, consumption data: heads per machine, shifts per day and current abrasive usage per square meter, so DINOSAW can estimate the life multiple and the real cost per slab against your present program. With these inputs the quotation can specify the recommended grit sequence, the quantity per step, packaging and delivery terms — rather than a generic per-piece price that ignores how the abrasives will actually run on your line.

The efficiency gain from resin bond Frankfurts comes from the structure of the polishing shift, not from a faster cutting speed per pass. With traditional abrasives the operator repeatedly stops the line, waits for the head, unscrews worn abrasives, cleans the holder seats, fits replacements and restarts — a cycle that can occur many times per shift on hard granite. Each interruption is lost production time, and each fresh abrasive needs several passes before it settles into a steady cut, which shows up as quality variation on the first slabs after every change. Because DINOSAW resin bond Frankfurts run dozens of times longer, a matched set keeps cutting through whole production runs without interruption: the heads stay in the cut, the removal rate stays steady, and surface quality stays stable from the first slab to the last. Fewer changes also mean less handling wear on holders and fewer re-balancing routines. When evaluating the switch, compare cost per polished square meter rather than cost per abrasive — divide your current abrasive spend by your current output, then ask DINOSAW to model the same figure for the resin program using your stone, grit sequence and daily volume. That figure, not the catalog price, is the number that decides the purchase.
