Down-Feed Thin Multi-Wire Saw for Medium Blocks
DSâ3412A

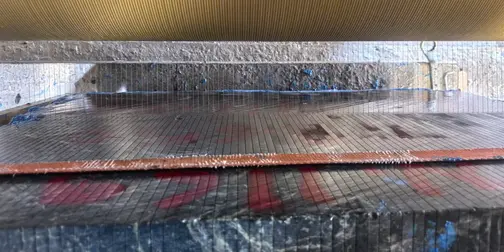

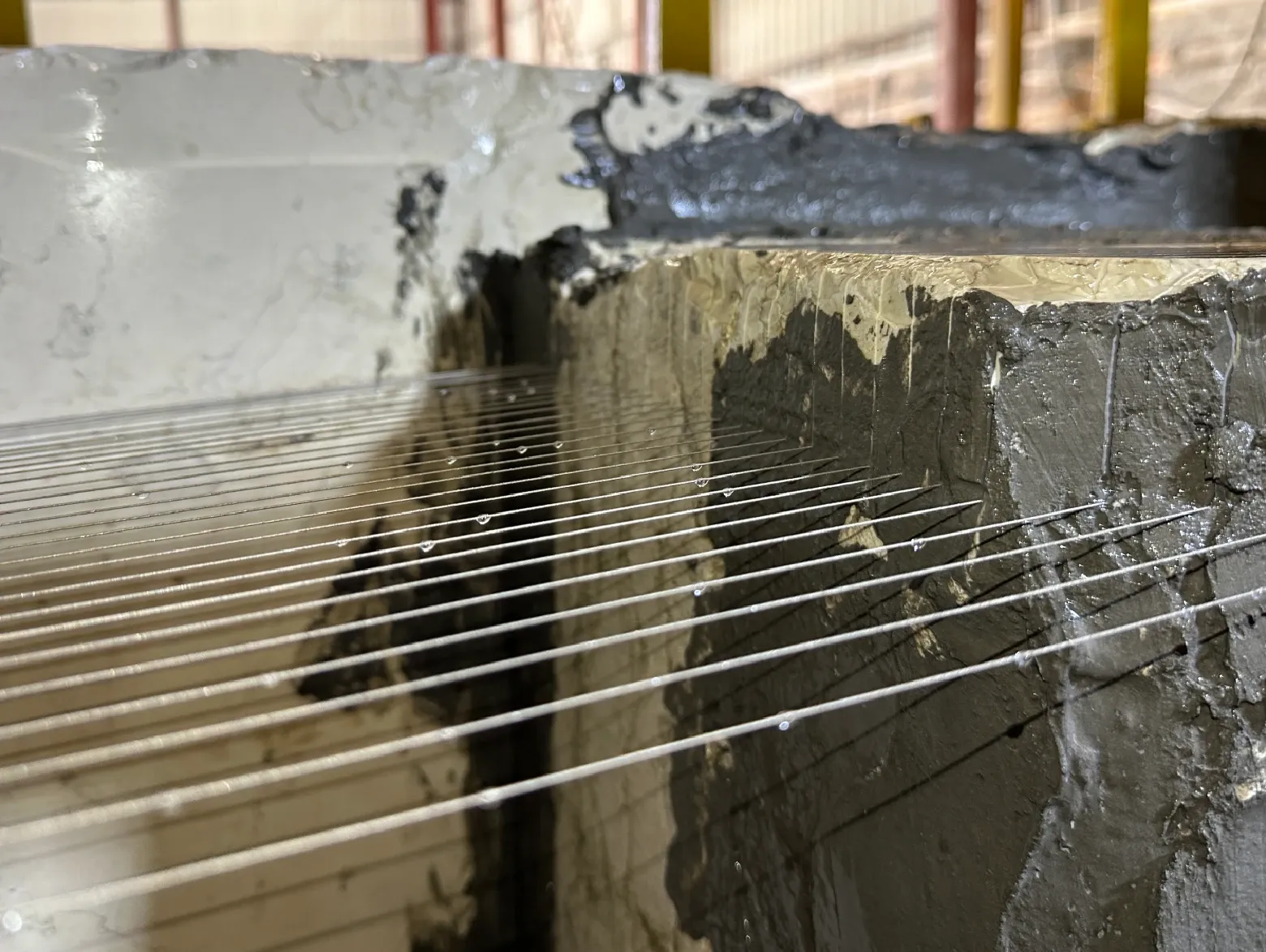

This downâfeed thin multiâwire saw cuts hard materials into thin and mediumâthin slabs efficiently. The pressâdown feed provides stable clamping and cutting force, suited to granite and engineered stone. Kerf â0.5â0.8 mm, with consistent thickness and smooth surfaces that reduce polishing work.
Built for mediumâsize blocks, it processes granite, luxury stone, engineered quartz, and sintered stone into thin slabs. By improving material yield and surface quality, it helps production lines reduce waste and postâprocessing.
Compatible Materials & Products
From Raw Blocks to Refined Products

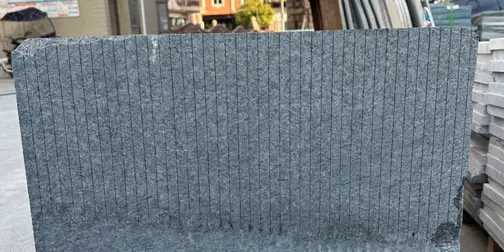

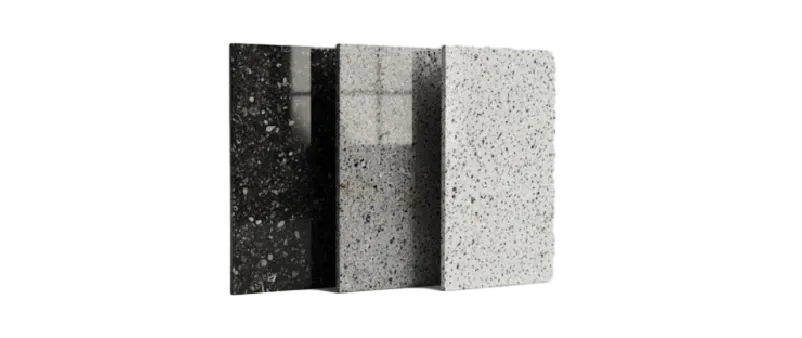

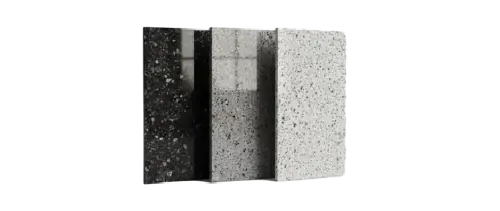

Granite > Headstone Veneers
 |
 |
Granite headstone veneer production requires a high-yield stone cutting machine capable of processing hard stone for commercial fabrication. The DINOSAW down-feed thin multi-wire saw is engineered for granite thin slab cutting, using a robust press-down mechanism for stable clamping of heavy blocks, which enables high-speed, precision machining. Controlled wire speed and a patented constant tension system ensure superior surface finish and thickness uniformity, delivering efficient processing. With a kerf of â0.5â0.8 mm, our granite cutting machine maximizes material yield, reduces polishing work, and produces premium-quality veneer panels. This streamlined fabrication process transforms granite block processing, ensuring consistent, professional-grade results for the memorial crafting industry. |

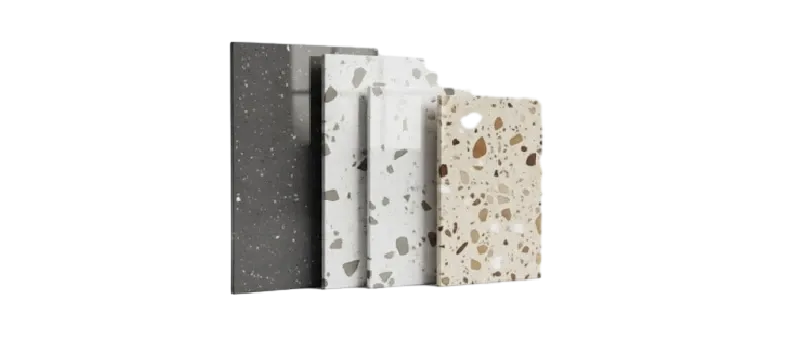

Engineered Quartz > Countertops
 |
 |
Fabricating engineered quartz countertops requires a multi-wire cutting machine that delivers precision cutting to meet high-volume demand for residential and commercial projects.
The DINOSAW down-feed multi-wire saw is optimized for engineered quartz thin slab production, maintaining stable down-feed pressure for rapid, accurate machining.
This high-performance processing ensures every slab meets strict dimensional tolerances and thickness uniformity.
The superior finish quality, achieved with a minimal kerf of â0.5â0.8 mm, reduces waste and subsequent post-processing.
This optimized setup enhances productivity, making it an ideal solution for competitive countertop fabrication. |

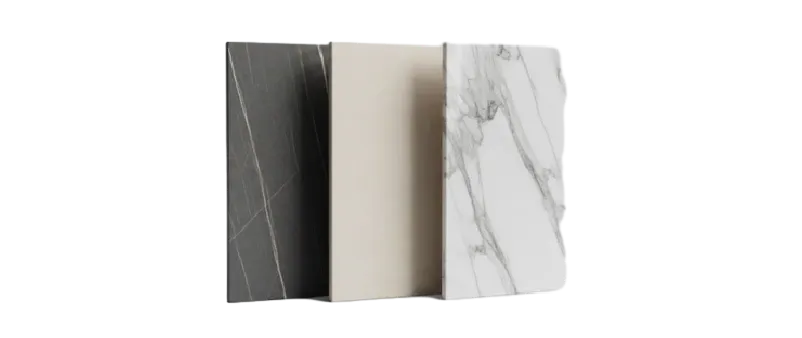

Sintered Stone > Wall Panels
 |
 |
Sintered stone wall panel production requires a thin multi-wire saw that ensures exceptional flatness and thickness consistency, which is critical for architectural projects.
DINOSAW's machine uses a down-feed system with stable clamping to apply consistent, powerful force, making it perfect for high-performance sintered stone thin slab cutting.
The precision machining process and controlled wire speed produce panels with excellent flatness while minimizing internal stress.
This accurate cutting delivers a high yield with clean edges and a kerf of â0.5â0.8 mm.
The resulting panels are ready for safe handling and seamless installation, providing a reliable fabrication solution for modern construction. |
Marble > Vanity Tops
 |
 |
The fabrication of luxury marble vanity tops relies on a stone cutting machine that prioritizes premium surface quality and exact dimensions.
For softer stones, the DINOSAW up-feed (H series) thin multi-wire saw is the preferred choice, as its up-feed mechanism allows for smoother debris evacuation and better surface protection during marble thin slab cutting.
Its constant tension control and precision guide system work together to reduce micro-chipping, delivering a finer finish.
The process enhances yield with a minimal kerf of â0.5â0.8 mm while maintaining high-grade finish quality.
This specialized machining process results in reduced material waste and a premium end product perfectly suited to the high-end interior design market. |

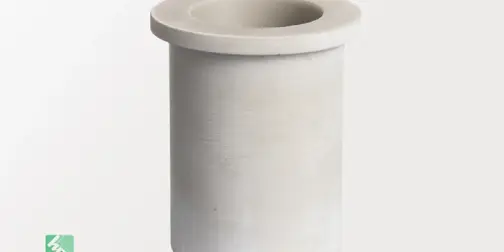

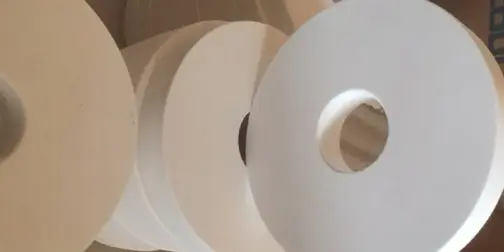

Alumina Ceramic > Thin Sheets
 |
 |
Alumina ceramic thin sheet production requires a diamond wire saw capable of high-precision machining with low material damage for sensitive industrial applications.
The DINOSAW thin multi-wire saw is perfectly suited for alumina ceramic thin cutting, utilizing a precision guide system and constant tension control to minimize vibration and stabilize the wire.
This process enables low-damage machining through controlled wire speed, which reduces thermal input and ensures superior surface integrity.
With a kerf of just â0.5â0.8 mm, the machine achieves superior accuracy and clean edges across multiple sheets simultaneously.
This advanced setup unlocks high-yield production, delivering consistent, reliable components for demanding electronic and industrial uses. |
Specs and options
Specifications customizable upon request.
| Item | Unit | DS-3412A |
|---|---|---|
| Feed type | / | Down-feed |
| Cutting feed rate | mm/h | 100-280 |
| Diamond wire diameter | mm | 0.35-0.8 |
| Slab thickness | mm | 2-30 |
| Cutting tension | N | 0-300 |
| Table lift travel | mm | 2400 |
| Wire storage | m | 30000 |
| Roller diameter | mm | 320-450 |
| Main motor power | kW | 64x4 |
| Max workpiece size (LxWxH) | mm | 3400x1100x2300 |
| Machine weight | T | 27-38 |
| Overall dimensions | mm | 8900x6400x5300 |
Option | Function | Recommendation |
|---|---|---|
Rotating table | Rotate block without re-hoisting; adjust cutting angle | Recommended for irregular blocks / non-standard angles |
Transfer cart (aux table) | Parallel loading/unloading beside main table | Mustâhave for peak throughput |
Extended rails | Longer cart travel space for multiâcart / long pieces | Pair with transfer cart or when layout needs longer travel |
Spindle box set (drive/idler) | Spare assembly for quick swap to cut downtime | Buy as spare if production loss is costly |
Roller | Key wireânet part; different materials/coatings affect wear/inertia | CF+PU for high speed/energy saving; iron/aluminum for budget |
Wire welder | Repair broken wire; fast wire recovery | Essential for most users |
Roller lathe | Preârecoat turning & alignment; reduce runâout/vibration | Own in highâutilization plants; outsource if low |
Tension wheel | Keep wire tension stable; core force element | Stock as consumable; set preventive replacement & calibration |
Guide wheel rubber ring | Protect wire & guide; improve friction & stability | Track wear & replace early for stable cutting quality |
Wire winder | Fast uniform winding; control pitch & initial tension | Standard for multiâwire; best with wire welder |
Robust engineering delivers consistent industrial power.
Press-Down Precision, High-Volume Thin Slabs
Stable Down-Feed
Heavy-duty, stable clamping ensures high-efficiency thin-slab cutting of granite and quartz.
Minimal Kerf, Superior Surface
Achieves a kerf of â0.5â0.8 mm, maximizing yield and reducing polishing workload significantly.
Constant Tension System
Ensures consistent wire tension for stable cutting, preventing wire breakage and ensuring accuracy.
Smart Wire Speed Management
Optimized wire speed control adapts to different materials, balancing efficiency and surface quality.
Low-Inertia Rollers
Lightweight Carbon Fiber rollers reduce energy consumption and improve stability during high-speed operation.
Optimized Footprint
Reduced footprint and foundation requirements compared to traditional saws, simplifying factory layout.
FAQs
Common Questions About Down-Feed Thin Multi-Wire Saw
How do I choose between a down-feed and an up-feed multi-wire saw?
Your choice depends on your primary material. For high-hardness materials like granite, engineered quartz, and other hard stones, the down-feed (Model A) is superior. Its press-down mechanism provides greater cutting force and more stable block clamping. For softer stones like marble or brittle materials requiring the absolute best surface finish, the up-feed (Model H) is often preferred for its smoother chip removal.
What is the relationship between diamond wire diameter and kerf width?
The final kerf (cutting width) is slightly wider than the diamond wire itself. As a general rule, the kerf is the wire diameter plus a small allowance for wire oscillation. For a 0.35â0.6mm wire, this typically results in a final kerf of approximately 0.5â0.8 mm. Using a thinner wire on a stable machine like this one directly translates to higher material yield.
How does a rotating workbench help with thin slab cutting?
A rotating workbench adds significant flexibility to your production. It allows you to rotate the stone block without needing to lift and reposition it with a crane. This is extremely useful for:
âą Correcting the angle of irregularly shaped blocks to maximize yield.
âą Performing cuts on different faces of the same block in a single setup.
âą Improving overall workflow efficiency and reducing machine downtime between jobs.
What role does a transition trolley play in productivity?
A workbench transition trolley is a key component for maximizing machine utilization. It allows you to prepare the next stone block on a separate trolley while the machine is busy cutting the current one. Once cutting is complete, you can quickly swap the finished trolley with the pre-loaded one. This parallel workflow drastically reduces machine idle time, leading to near-continuous operation and a significant boost in overall plant throughput.
Is machine maintenance complex? How long does it take to change wires?
Maintenance is streamlined for modern industrial use. Routine checks involve cleaning, inspecting guide wheels, and lubrication. With essential auxiliary tools like a wire welding machine and a winder, a skilled operator can replace the entire wire web within an hour. This is significantly faster than the maintenance required for older, traditional cutting equipment, ensuring higher machine uptime.
What are the main benefits of a thin multi-wire saw over a gangsaw?
A thin multi-wire saw offers compelling advantages. It achieves a much narrower kerf, leading to significantly higher material yield from the same block. It also operates with less noise, consumes less energy, produces less slurry, and requires a smaller foundation and footprint. The superior surface quality of the cut slabs also reduces subsequent polishing costs, making it a more profitable and environmentally friendly choice for modern factories.
Can this machine cut ultra-thin slabs (e.g., â€3mm)?
Yes, cutting ultra-thin slabs is a key capability, though it requires an optimized setup. Success depends on the synergy of the machine's high-precision constant tension system, a fine-diameter diamond wire, and stable block clamping. The rigid structure and advanced controls of our down-feed machine provide the necessary stability to produce slabs as thin as 2-3 mm from suitable, high-quality blocks.
