Step-by-step SOPs, troubleshooting flows, preventive maintenance, and safety practices for your 5axis waterjet cutting stone and advanced materials.

Maximizing the uptime and precision of your 5-axis waterjet requires a disciplined approach to operations and maintenance. This guide provides practical steps for daily start-up, calibration, and safety inspections, along with fast diagnosis paths for the most common issues encountered when cutting stone countertops and other advanced materials.

Following standardized procedures reduces setup time, minimizes errors, and extends the life of critical components like high-pressure seals and nozzles. A consistent maintenance rhythm is the key to predictable performance and profitability in any fabrication shop.

Get the O&M checklist adapted to your machine lineup.

Start-Up, Changeover & Calibration SOPs

A structured Standard Operating Procedure (SOP) ensures every operator performs critical tasks consistently. Here is a checklist-style guide for daily operations.

  • Daily Start-Up: Check water levels, verify pump oil level, inspect high-pressure lines for leaks, confirm safety interlocks are functional, and check abrasive hopper level.

  • Changeover: Clear the work area of previous material and debris, load the new program, verify tool offsets, and confirm the correct nozzle and mixing tube are installed for the next job.

  • Consumables Check: Visually inspect the nozzle for any signs of chipping or wear. Ensure the abrasive feed line is clear and free of moisture.

  • Safety Checks: Confirm all E-stop buttons are accessible, light curtains (if equipped) are operational, and all machine guards are in place.

Pressure Calibration & Abrasive Feed Stability

Consistent pressure and abrasive flow are vital for cut quality. Calibrate pump pressure according to the maintenance schedule or whenever a pressure drop is noticed. Check that the abrasive delivery system provides a steady, uninterrupted flow to the cutting head to avoid variations in edge finish.

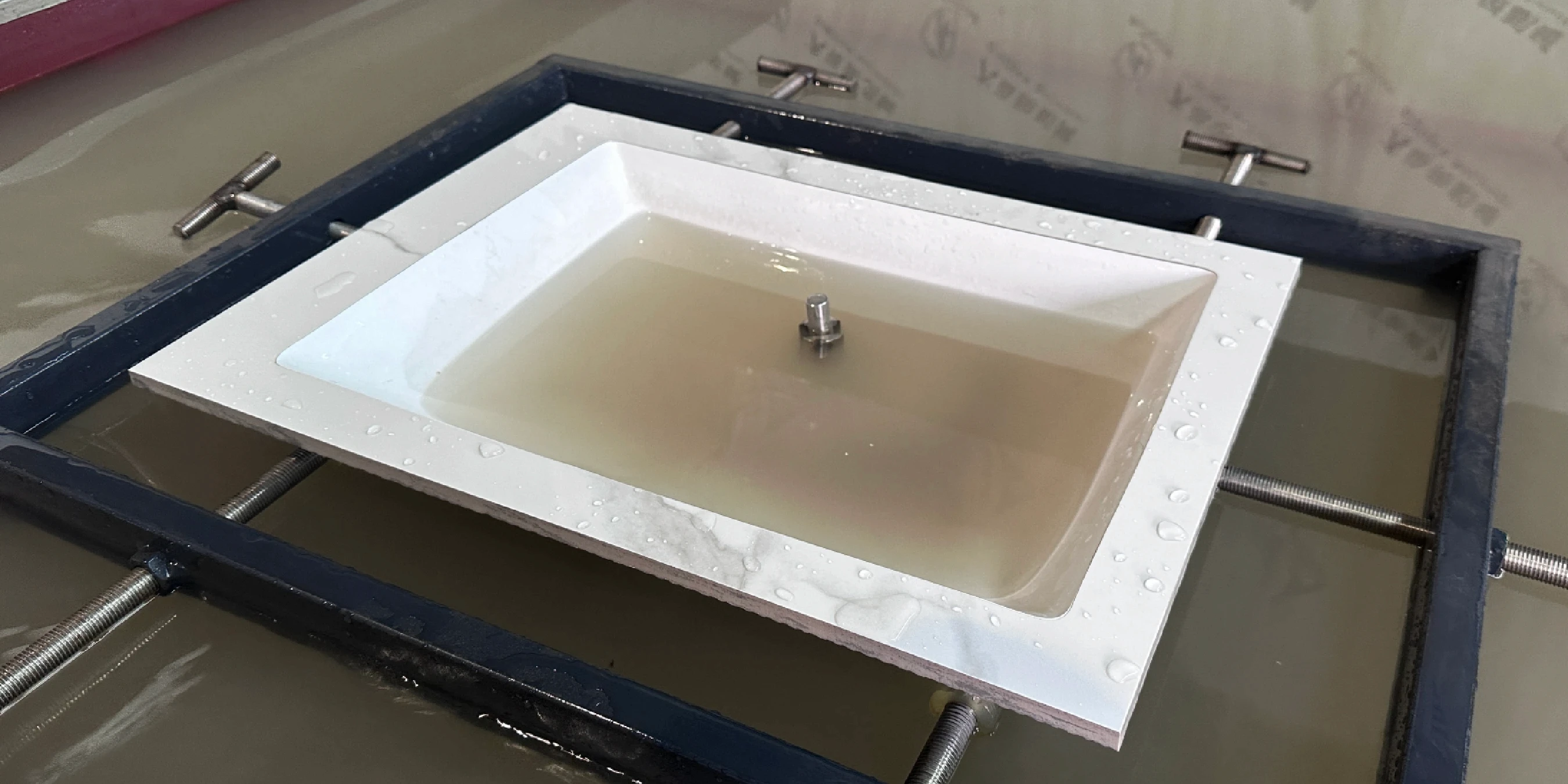

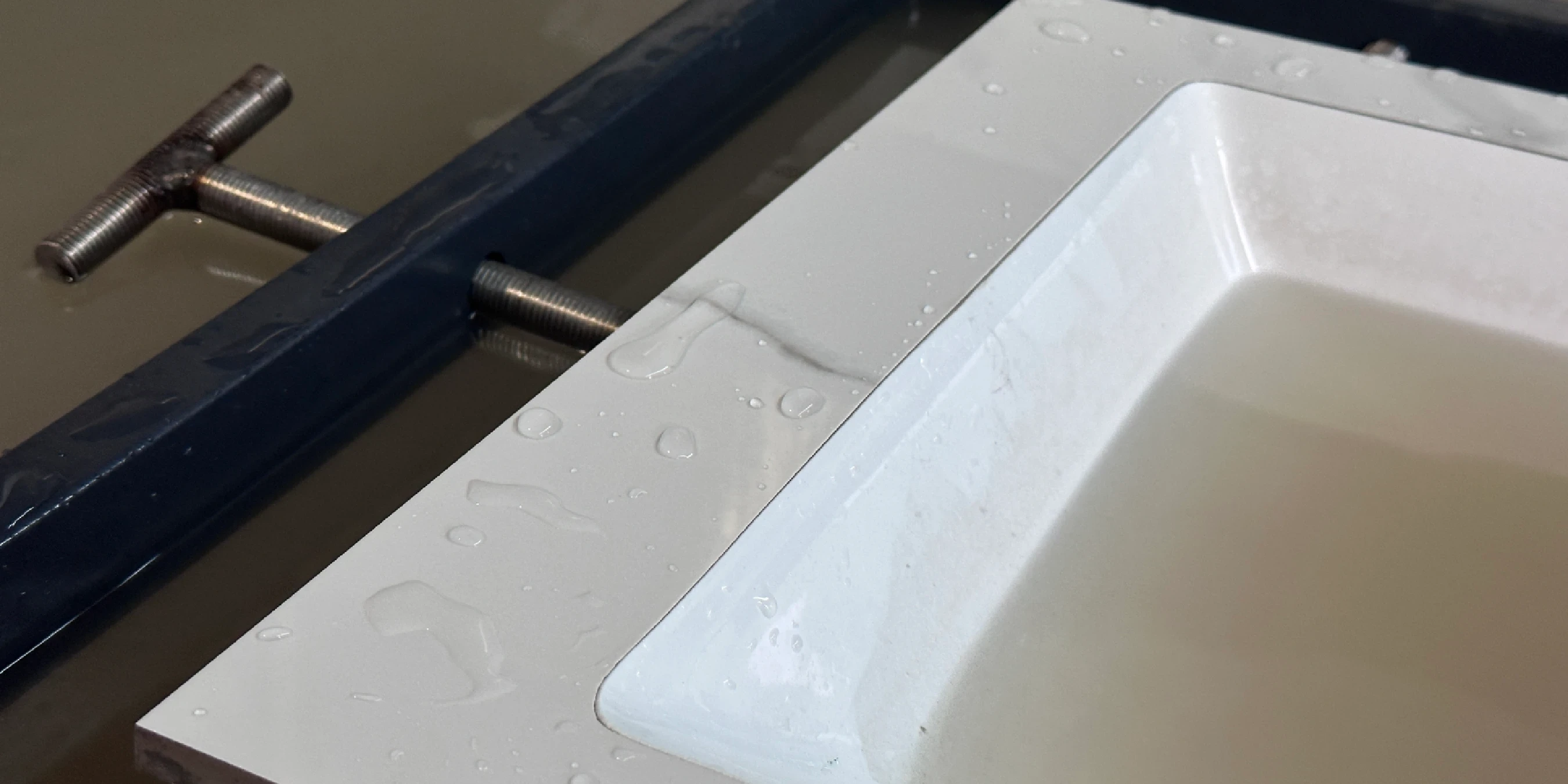

Troubleshooting Edge Chipping (Granite/Quartz/Ceramic)

Edge chipping on hard stone is a common but preventable issue. It is often caused by incorrect parameters or worn consumables. If chipping occurs, check your feed rate (too fast), abrasive flow (too low), or nozzle condition (worn).

Low-Pressure Pierce for Sintered Slabs & Glass

For extremely brittle materials like sintered slabs and glass, always use a low-pressure piercing function. This creates a pilot hole without inducing stress fractures before ramping up to full pressure for the cut. An incorrect pierce strategy is the primary cause of material shattering.

Top 5 Troubleshooting Flow

Symptom

Potential Cause

Diagnosis & Fix

Pressure Drop

Worn seals; external leak; clogged filter.

Inspect for leaks. Check pump oil level. Replace high-pressure seals. Clean water filters.

Poor Edge Quality

Worn nozzle/mixing tube; incorrect speed; low abrasive flow.

Inspect and replace nozzle/tube. Decrease feed rate. Check for clogs in abrasive line.

Abrasive Line Clog

Moist or poor-quality abrasive; blockage at valve.

Purge the line. Check abrasive for dampness. Use only recommended garnet mesh size.

Material Shattering on Pierce

Pierce pressure too high.

Use low-pressure or dynamic piercing mode. Increase pierce standoff distance.

Inaccurate Cuts

Loose material; worn gantry components.

Verify material is securely fixtured. Inspect for mechanical backlash. Re-calibrate axes.

Preventive Maintenance & Safety (PPE/Compliance)

A routine maintenance schedule is the best defense against unexpected downtime. For a detailed plan, check our waterjet manual.

HMI Alarms, IO Interlocks, Cooling Tower Service

Pay immediate attention to any HMI alarms, as they often indicate a developing issue. Regularly test all IO interlocks and safety systems. The cooling tower should be cleaned quarterly to ensure efficient heat exchange and protect the UHP pump. As one operator noted, “A clean cooling tower in the summer is the difference between running all day and constant pump shutdowns.”

Frequently Asked Questions

How often should I replace high-pressure seals and nozzles?

Nozzle life depends on usage but expect to inspect it daily and replace it after 50-100 hours of cutting. Seal life can range from 200-500 hours.

What PPE is mandatory for waterjet operation?

Safety glasses and hearing protection are essential. Depending on your material, a dust mask (for silica) and waterproof gloves may also be required.

How do I diagnose a sudden drop in pressure?

First, check for visible water leaks around the pump and cutting head. If none are found, inspect the pump’s check valves and seals, as they are the most common points of internal failure.

Should I adjust abrasive flow for sintered slabs?

Yes. Sintered slabs often require a finer, more consistent abrasive flow than granite. Start with the manufacturer's recommendation and adjust in small increments to find the sweet spot that minimizes chipping.

How to recalibrate the pump's pressure compensator?

Recalibrate the pump's pressure compensator after replacing seals or if you notice cutting performance has degraded. Follow DINOSAW waterjet guide for this procedure.

How can water management reduce staining on porous stone?

Using a water recycling or filtration system can remove minerals that may cause staining. Additionally, promptly removing the cut part from the water tank and rinsing it with clean water helps prevent residue from settling.
